Ferguson TE-20 Engine


Ferguson TE-20 tractor photo
1946 - 1948
Utility tractor
Series map:
TE-20
28.2hp*
*Estimated engine power for comparison only.
Engine Detail
Continental Z-120
gasoline
4-cylinder
liquid-cooled vertical I-head
Displacement120 ci
2.0 L
Bore/Stroke3.19x3.75 inches
81 x 95 mm
Fuel use2.27 gal/hour
8.6 l/hour
Air cleaneroil bath
Rated RPM1750
Starter volts6
Engine Oil

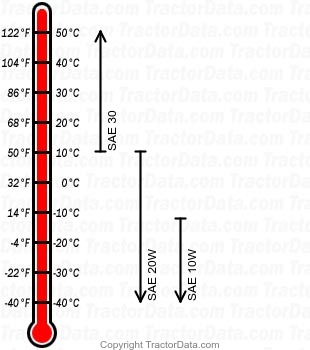

TE-20 gasoline engine oil chart
Oil capacity6 qts
5.7 L
