Steiger 9190 Transmission


No photo available
1987
9100 Series
Four-wheel Drive (4WD) tractor
Series map:
9180
9190
375.0hp
525.0hp

Note: the Steiger model 9190 is the same as the CaseIH 9190. The following data is from the 9190 listing.
Transmission
ManufacturerAllison
Typesix-speed power shift
Gears24 forward and 4 reverse
Six gears (1-6) plus reverse in four ranges.
Speeds
With 30.5x32 rear tires.

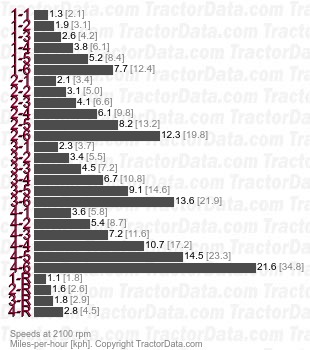

9190  six-speed power shift speeds
