Steiger 9150 Transmission


No photo available
1986 - 1990
9100 Series
Four-wheel Drive (4WD) tractor
Series map:
9130
9150
9170
220.0hp
280.0hp
335.0hp

Note: the Steiger model 9150 is the same as the CaseIH 9150. The following data is from the 9150 listing.
Transmission
Typefull power shift
Gears12 forward and 2 reverse
Clutchhydraulic wet disc
Speeds
With 24.5x32 tires.

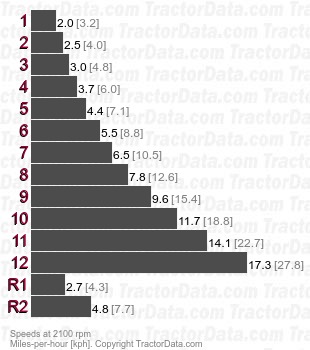

9150  full power shift speeds
