Steiger 9130 Transmission


No photo available
1986 - 1990
9100 Series
Four-wheel Drive (4WD) tractor
Series map:
9110
9130
9150
190.0hp
220.0hp
280.0hp

Note: the Steiger model 9130 is the same as the CaseIH 9130. The following data is from the 9130 listing.
Transmission
Typefull power shift
Gears12 forward and 2 reverse
Clutchhydraulic wet disc

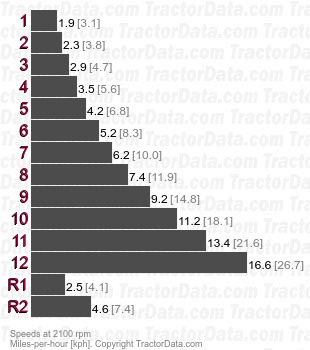

Speeds
With 18.4x38 tires.
9130  full power shift speeds
