Steiger Lion 1000

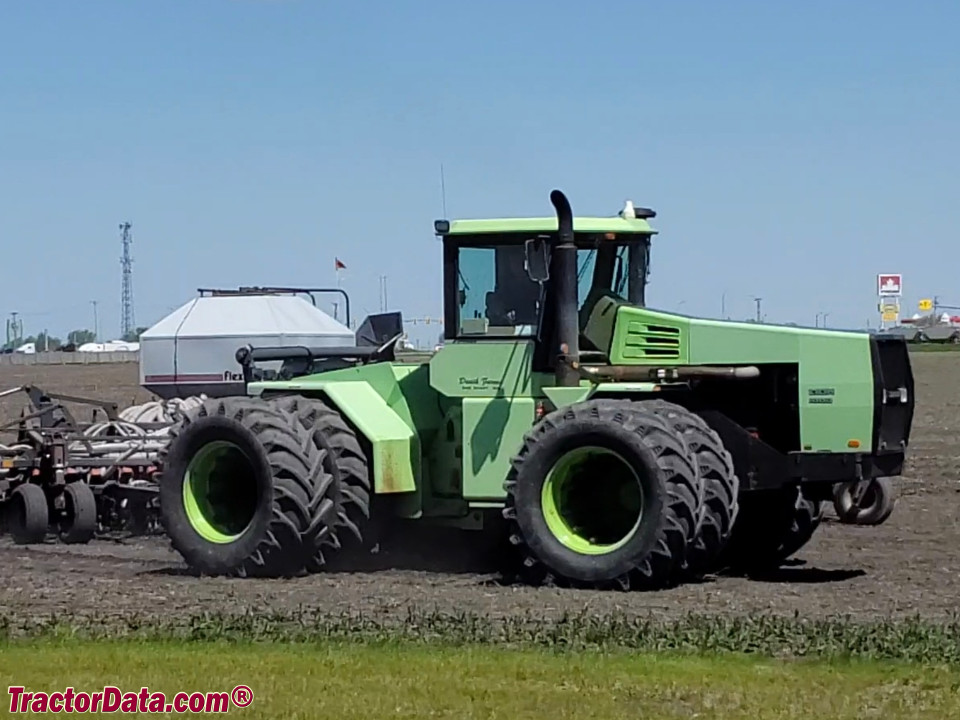

Steiger Lion 1000 tractor photo
1986
1000 Series
Four-wheel Drive (4WD) tractor
Series map:
Panther 1000
Lion 1000
335.0hp
375.0hp
Production
ManufacturerSteiger
Four-wheel Drive (4WD) tractor
Built in Fargo, North Dakota, USA
Variants
9180similar CaseIH model
Steiger Lion 1000 Engines
Cummins 14.0L 6-cyl diesel
Caterpillar 14.6L 6-cyl diesel
Engine details ...
Steiger Lion 1000 Power
Engine375 hp
279.6 kW
Drawbar (claimed)316 hp
235.6 kW
Mechanical
Four-wheel drive
Final drivesoutboard planetary
Steeringhydrostatic power
Hydraulic disc brakes
Cab standard with air-conditioning.
Capacity
Fuel236 gal
893.3 L
Hydraulic system26 gal
98.4 L
Hydraulics
Typeclosed center load sensing pressure compensating
Capacity26 gal
98.4 L
Pressure2500 psi
172.4 bar
Valves3 or 4
Pump flow40 gpm
151.4 lpm
Tractor hitch
Rear TypeIV OptOptional
Dimensions & Tires
Wheelbase141.5 inches
359 cm
Weight29000 lbs
13154 kg
Front tire24.5x32
Rear tire24.5x32
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps130
Batteries4
Battery CCA625
Battery volts12
References
Lion 1000 references literature
Lion 1000 published in 1986, by Steiger
Steiger Tractor, Inc. published in 1986
