Tractors > Steiger > Puma 1000

Steiger Puma 1000

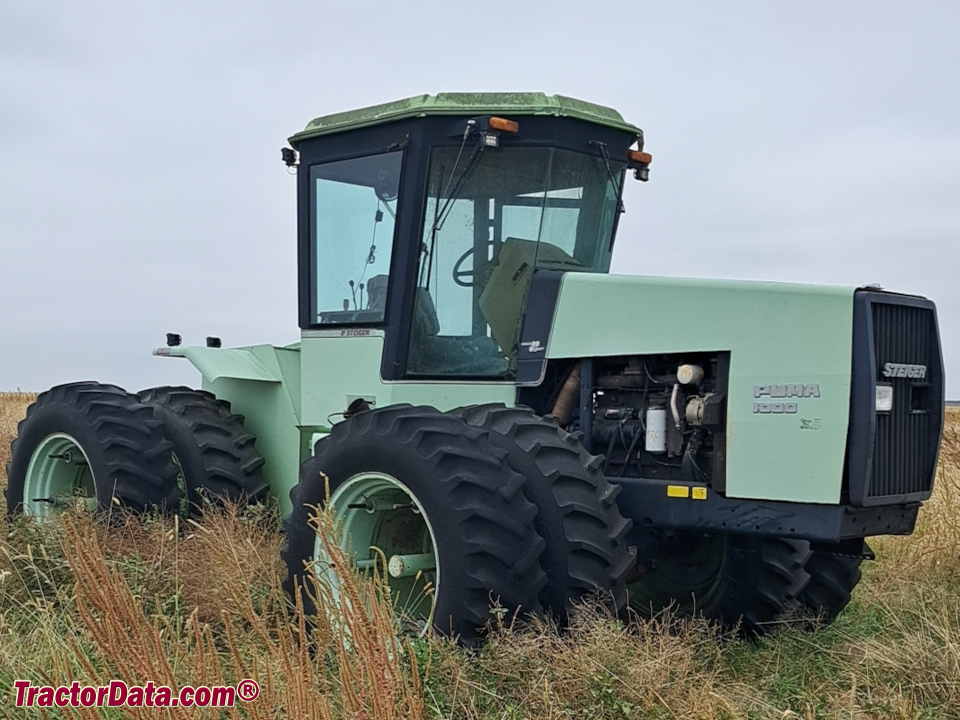

Steiger Puma 1000 tractor photo
1986 - 1988
1000 Series
Four-wheel Drive (4WD) tractor
Series map:
Puma 1000
Wildcat 1000
190.0hp
220.0hp
Production
ManufacturerSteiger
Four-wheel Drive (4WD) tractor
Built in Fargo, North Dakota, USA
Variants
9110similar CaseIH model
Steiger Puma 1000 Engine
CDC 8.3L 6-cyl diesel
Engine details ...
Steiger Puma 1000 Transmission
12-speed full power shift
Transmission details ...
Steiger Puma 1000 Power
Engine (gross)190 hp
141.7 kW
PTO (claimed)168 hp
125.3 kW
Mechanical
Four-wheel drive
Final drivesinboard planetary
Steeringhydrostatic power for steerable front axle and articulated chassis
Hydraulic disc brakes
Cab standard with air-conditioning.
Photos
No photos of the Steiger Puma 1000 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel115 gal
435.3 L
Hydraulic system18 gal
68.1 L
Hydraulics
Typeclosed center
Capacity18 gal
68.1 L
Pressure2500 psi
172.4 bar
Valves2 to 4
Pump flow27 gpm
102.2 lpm
Tractor hitch
Rear TypeIII OptOptional
Power Take-off (PTO)
Rear PTOindependent OptOptional
Rear PTO Type1000 (1.75)
Dimensions & Tires
Wheelbase120.38 inches
305 cm
 124 inches (steerable axle)
314 cm
Weight17000 lbs
7711 kg
Front tire18.4-38
Rear tire18.4-38
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps105
Batteries2
Battery CCA625
Battery volts12
References
Puma 1000 references literature
Puma 1000 published in 1986, by Steiger
Steiger Tractor, Inc. published in 1986
