Steiger Panther IV KM-325

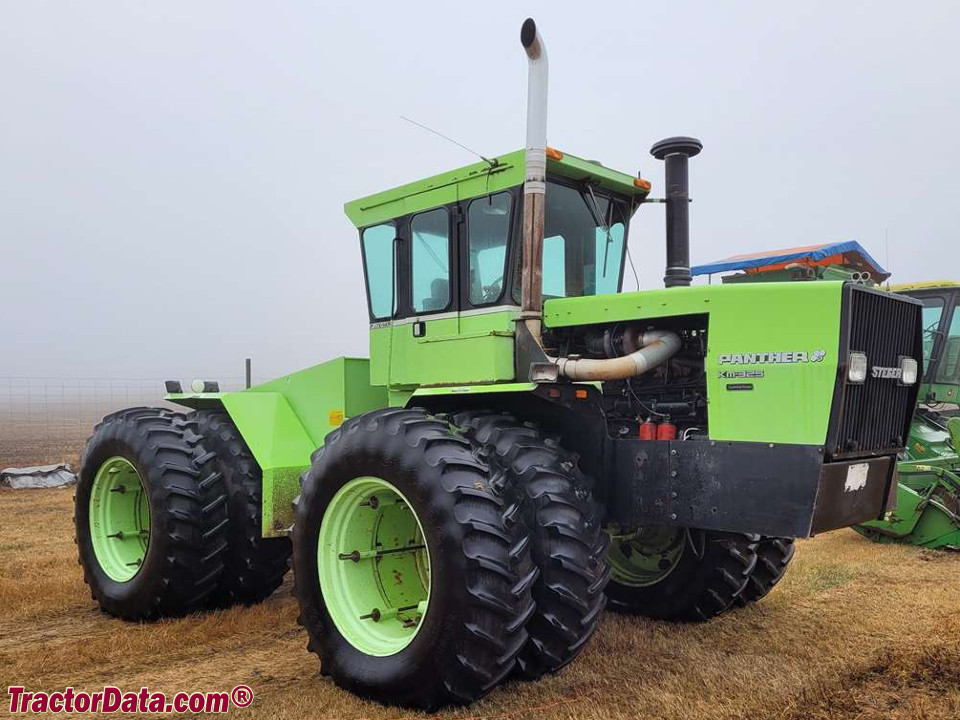

Steiger Panther IV KM-325 tractor photo
1983 - 1985
IV Series
Four-wheel Drive (4WD) tractor
Production
ManufacturerSteiger
Four-wheel Drive (4WD) tractor
Built in Fargo, North Dakota, USA
Variants
CM325Caterpillar gear shift
CS325Caterpillar power shift
KM325Cummins gear shift
KS325Cummins power shift
SM325Komatsu gear shift
Steiger Panther IV KM-325 Engine
Cummins 14.0L 6-cyl diesel
Fuel tank267 gal
1010.6 L
Engine details ...
Steiger Panther IV KM-325 Transmission
20-speed Constant mesh 10-speed transmission with 2-speed transfer case.
Transmission details ...
Steiger Panther IV KM-325 Power
Engine325 hp
242.4 kW
Drawbar (claimed)286 hp
213.3 kW
Drawbar (tested)276.11 hp
205.9 kW
Performance test details ...
Mechanical
Four-wheel drive
Articulated power steering
Hydraulic disc brakes
Steiger Safari Cab standard with air-conditioning.
Hydraulics
Typeopen center
Pressure2250 psi
155.1 bar
Valves3 to 5
Pump flow28.6 gpm
108.3 lpm
Tractor hitch
Rear TypeIII OptOptional
Dimensions & Tires
Wheelbase129 inches
327 cm
Weight26653 lbs
12089 kg
Front tire23.1x34
Rear tire23.1x34
Full dimensions and tires ...
Panther IV KM-325 Serial Number Location
Steiger Panther IV KM-325 serial number location
Serial number plate on the left-side fender.
Panther IV KM-325 Serial Numbers
1983107-03001
1984107-03201
198507-05001

FAQ: How to read a serial number table.
Electrical
Charging systemalternator
Charging amps90
Batteries3
Battery volts12
References
Panther IV KM-325 references literature
Panther IV published in 1983, by Steiger
The Steiger Line published in 1983
