Steiger Cougar IV CS-280
|
|
| Production | |
| Manufacturer | Steiger |
| Four-wheel Drive (4WD) tractor | |
| Built in Fargo, North Dakota, USA | |
| Steiger Cougar IV CS-280 Engine | |
| Caterpillar 14.6L 6-cyl diesel | |
| Fuel tank | 225 gal 851.6 L |
 Engine details ... | |
| Steiger Cougar IV CS-280 Transmission | |
| 10-speed power shift | |
 Transmission details ... |
| Steiger Cougar IV CS-280 Power | |
| Engine | 280 hp 208.8 kW |
| Drawbar (claimed) | 236 hp 176.0 kW |
| Mechanical | |
| Four-wheel drive | |
| Final drives | outboard planetary |
| Articulated power steering | |
| Hydraulic disc brakes | |
| Cab standard with air-conditioning. | |
| Hydraulics | |
| Type | open center |
| Pressure | 2250 psi 155.1 bar |
| Valves | 3 to 5 |
| Pump flow | 31.3 gpm 118.5 lpm |
| Tractor hitch | |
| Rear Type | III OptOptional |
| Dimensions & Tires | |
| Wheelbase | 132.5 inches 336 cm |
| Weight | 26252 lbs 11907 kg |
| Front tire | 18.4-38 |
| Rear tire | 18.4-38 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 90 |
| Batteries | 4 |
| Battery volts | 12 |

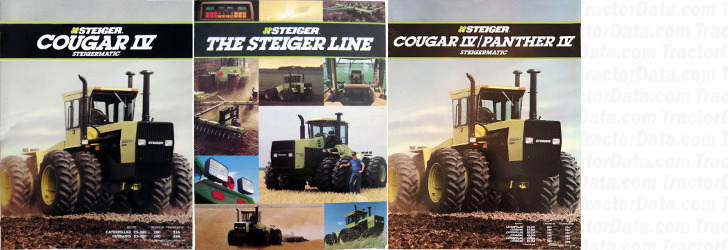

| References | |
 | |
| Cougar IV Steigermatic published in 1983 | |
| The Steiger Line published in 1983 | |
| Cougar IV/Panter IV Steigermatic published in 1984 |
