Steiger Panther III PTA-310


Steiger Panther III PTA-310 tractor photo
1980 - 1982
III Series
Four-wheel Drive (4WD) tractor
Production
ManufacturerSteiger
Four-wheel Drive (4WD) tractor
Built in Fargo, North Dakota, USA
Original price was $100,500 in 1982
A Steiger Panther III PTA-310 was the "Pink Panther", a custom-ordered pink Panther III. Steiger used the "Pink Panther" in advertising.
Steiger Panther III PTA-310 Transmission
10-speed power shift with torque converter
Transmission details ...
Steiger Panther III PTA-310 Power
Engine310 hp
231.2 kW
Mechanical
Four-wheel drive
Final drivesoutboard planetary
Articulated power steering
Hydraulic disc brakes
Safari Cab standard with air-conditioning.
Hydraulics
Typeopen center
Pressure2250 psi
155.1 bar
Valves3 to 5
Pump flow28.6 gpm
108.3 lpm
Tractor hitch
Rear TypeIII OptOptional
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000
Dimensions & Tires
Wheelbase132.5 inches
336 cm
Weight28400 lbs
12882 kg
Front tire23.1-34
Rear tire23.1-34
Full dimensions and tires ...
Electrical
Groundnegative
Charging amps90
Battery volts12
References

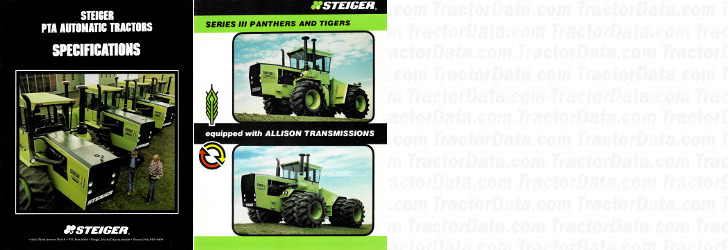

Panther III PTA-310 references literature
PTA Automatic Tractors published in 1981, by Steiger
Series III Panthers and Tigers equipped with Allison Transmissions published in 1979, by Steiger
