Tractors > Steiger > Bearcat III ST-220

Steiger Bearcat III ST-220 Transmission



Steiger Bearcat III ST-220 tractor photo
1976 - 1977
III Series
Four-wheel Drive (4WD) tractor
Series map:
Wildcat III ST-210
Bearcat III ST-220
Cougar III ST-250
210.0hp
220.0hp
250.0hp
Transmission
TransmissionSpicer SST 1010
Gears20 forward and 4 reverse
Clutch394mm cerametallic disc
Oil capacity60 qts
56.8 L

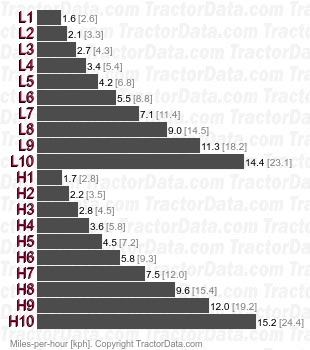

Speeds
With 23.1-30 tires.
Bearcat III ST-220 SST 1010 speeds

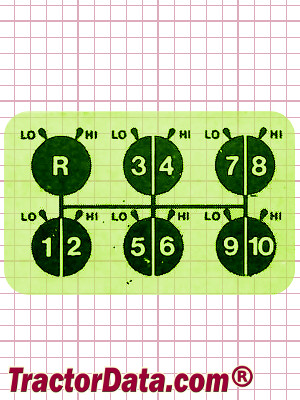

Shift Pattern
Steiger Bearcat III ST-220 transmission controls
