Steiger Turbo Tiger II ST-320

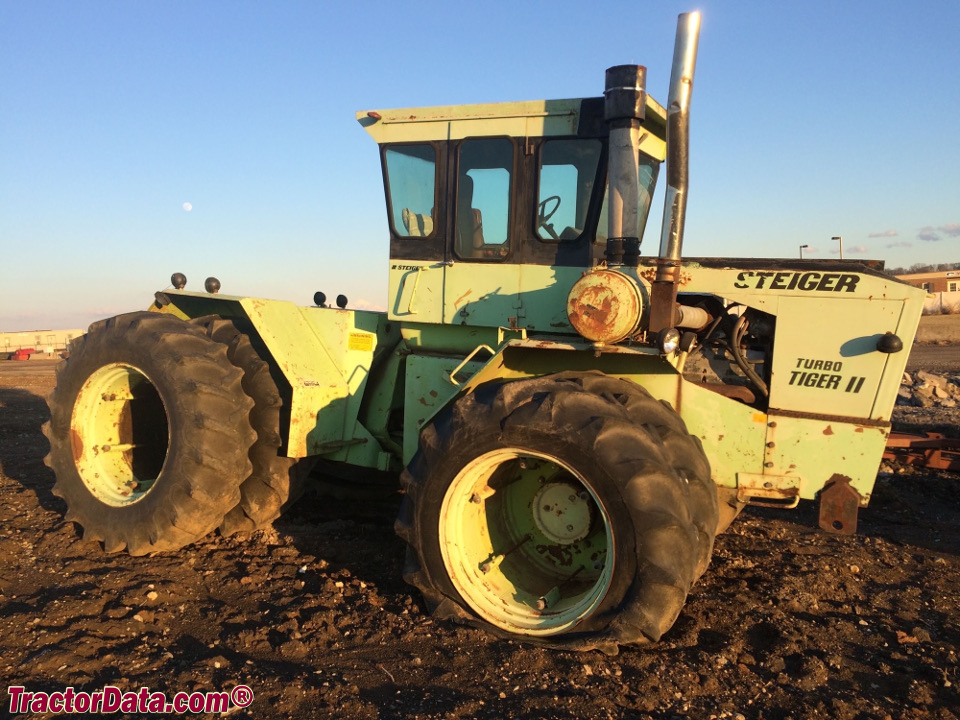

Steiger Turbo Tiger II ST-320 tractor photo
1974 - 1976
II Series
Four-wheel Drive (4WD) tractor
Series map:
Panther II ST-310
Turbo Tiger II ST-320
310.0hp
320.0hp
Production
ManufacturerSteiger
Four-wheel Drive (4WD) tractor
Built in Fargo, North Dakota, USA
Original price was $52,000 in 1975
Steiger Turbo Tiger II ST-320 Power
Engine320 hp
238.6 kW
Drawbar (claimed)262 hp
195.4 kW
PTO (claimed)305 hp
227.4 kW
Drawbar (tested)262.13 hp
195.5 kW
Performance test details ...
Mechanical
Four-wheel drive
Final drivesoutboard planetary
Articulated power steering
Hydraulic disc brakes
Cab standard with optional heat and air-conditioning.
Hydraulics
Typeopen center
Valves3
Pump flow25 gpm
94.6 lpm
Total flow43 gpm
162.8 lpm
Steering flow18 gpm
68.1 lpm
Tractor hitch
Rear TypeIII OptOptional
Dimensions & Tires
Wheelbase121.5 inches
308 cm
Weight24000 lbs
10886 kg
Front tire23.1-30
Rear tire23.1-30
Full dimensions and tires ...
Turbo Tiger II ST-320 Serial Numbers
197430101
197530198
197630430

FAQ: How to read a serial number table.
Electrical
Charging systemalternator
Charging amps62
Battery volts12
References
Turbo Tiger II ST-320 references literature
4-Wheel Drive Agri-Power published in 1974, by Steiger
