Minneapolis-Moline G1355 Transmission


Minneapolis-Moline G1355 tractor photo
1972 - 1974
Series map:
G955
G1355
107.8hp*
163.3hp*
*Estimated engine power for comparison only.
Transmission options
6-speed gear
18-speed three-range power shift
Transmission
Typegear
Gears6 forward and 2 reverse
Clutch355.6mm dry disc
Oil capacity43 qts
40.7 L
Speeds
With 18.4-38 rear tires.

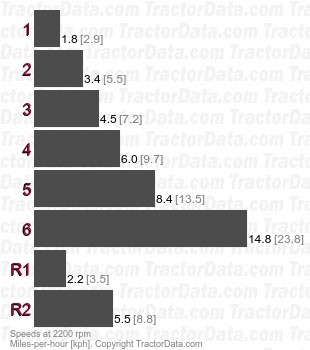

G1355  gear speeds
Transmission
TransmissionHydraul-Shift
Typethree-range power shift
Gears18 forward and 6 reverse
Clutch355.6mm dry disc
Speeds
With 18.4-38 rear tires.

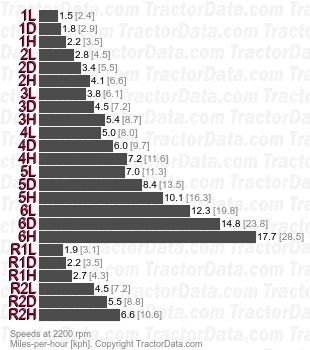

G1355 Hydraul-Shift three-range power shift speeds
