Minneapolis-Moline G1000

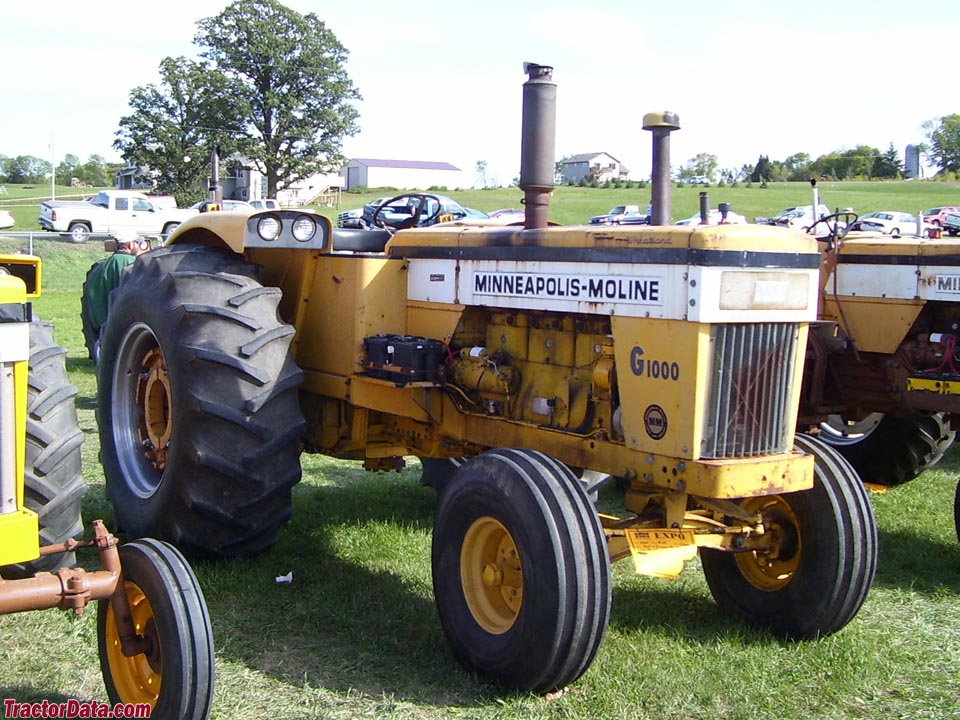

Minneapolis-Moline G1000 tractor photo
1965 - 1969
Series map:
G1000
100.0hp
Production
ManufacturerMinneapolis-Moline
Built in Minneapolis, Minnesota, USA
Total built7,397
Original price was $8,200 in 1969
The Minneapolis-Moline G-1000 was available in three types: row-crop, wheatland, and the Vista-- which featured a high operator's platform that provided a wide field of view.
Minneapolis-Moline G1000 Engines
Minneapolis-Moline 8.3L 6-cyl diesel
Minneapolis-Moline 8.3L 6-cyl LP gas
Minneapolis-Moline 8.3L 6-cyl gasoline
Fuel tank40 gal
151.4 L
 56 gal (Vista)
212.0 L
Engine details ...
Minneapolis-Moline G1000 Transmission
10-speed partial power shift
Transmission details ...
Minneapolis-Moline G1000 Power
Engine100 hp
74.6 kW
PTO (claimed)111 hp
82.8 kW
Drawbar (tested)100.99 hp
75.3 kW
PTO (tested)111.00 hp
82.8 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Final drivesbull gear
Steeringhydraulic power
Differential hydraulic dry discs brakes
Open operator station. Cab optional with A/C.
Photos
Minneapolis-Moline G-1000 wheatland
Minneapolis-Moline G1000 photos...
Hydraulics
Typeopen center
Valves2 or 3
Tractor hitch
Rear TypeII
Power Take-off (PTO)
Rear PTOindependent
Clutchwet disc
Rear PTO Type540/1000 (1.375)
Engine RPM540@1800
 1000@1800
Dimensions & Tires
Wheelbase103 inches
261 cm
Weight10700 to 12100 pounds
Front tire10.00-16
Rear tire23.1-30
Full dimensions and tires ...
G1000 Serial Number Location

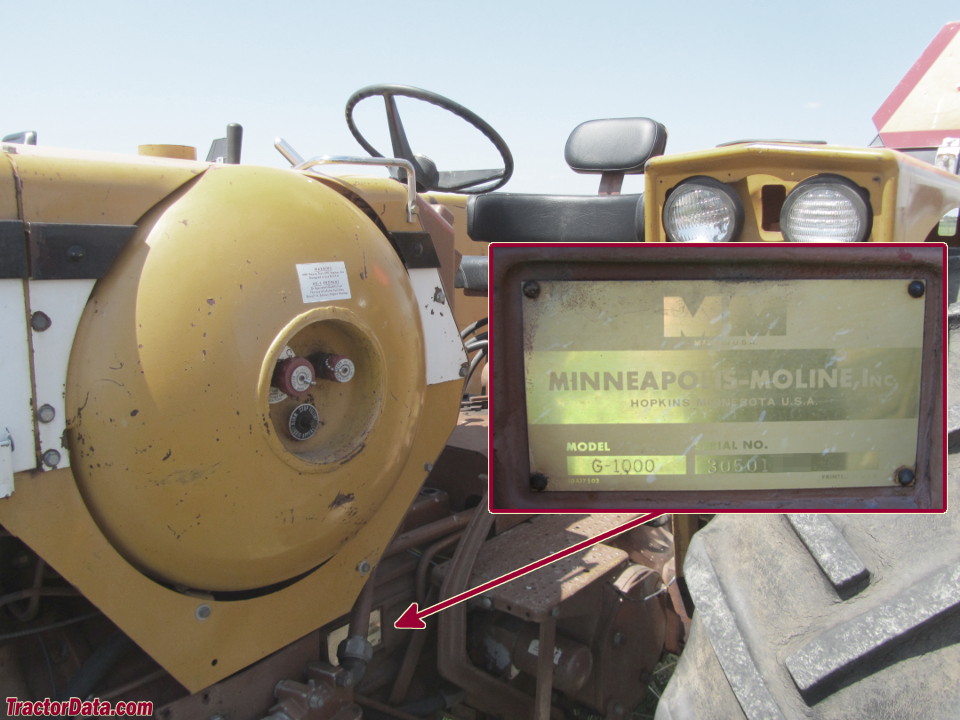

Minneapolis-Moline G1000 serial number location
Side of transmission case
G1000 Serial Numbers
196530600001 (diesel row crop)
196630600501 (diesel row crop)
196730601126 (diesel row crop)
196830601286 (diesel row crop)
196834600016 (Vista diesel)
196934600736 (Vista diesel)
197034601186 (Vista diesel)
196632700001 (wheatland diesel)
196732700734 (wheatland diesel)
196832701451 (wheatland diesel)
197032701775 (wheatland diesel)
196530500001 (gas row crop)
196630500451 (gas row crop)
196730500927 (gas row crop)
196830501042 (gas row crop)
196734500011 (Vista gas)
196632600001 (wheatland gas)
196732600516 (wheatland gas)
196832600651 (wheatland gas)
197034500791 (wheatland gas)
196734500011 (Vista LP)
196834500291 (Vista LP)
196934500391 (Vista LP)
197034500791 (Vista LP)

FAQ: How to read a serial number table.
Links
G-1000 Series: article at TractorShop.com
References
G1000 references literature
New G1000 Vista published in 1968, by Minneapolis-Moline
