Minneapolis-Moline G950 Transmission


Minneapolis-Moline G950 tractor photo
1969 - 1971
Standard-tread tractor
Series map:
G950
G1050
107.8hp*
122.2hp*
*Estimated engine power for comparison only.
Transmission options
10-speed two-speed power shift
15-speed three-speed power shift
Transmission
TransmissionMinneapolis-Moline Ampli-Torc
Typetwo-speed power shift
Gears10 forward and 2 reverse
Clutch355.6mm dry disc
Oil capacity88 qts
83.3 L
Five-speed transmission with power shift between drive drive (DD) and Ampli-Torc (AT).
Speeds
With 18.4-38 rear tires.

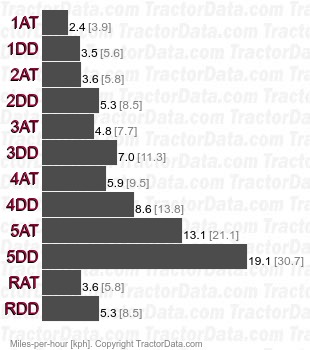

G950 Ampli-Torc two-speed power shift speeds
Transmission
TransmissionMinneapolis-Moline Ampli-Torc
Typethree-speed power shift
Gears15 forward and 3 reverse
Clutch355.6mm dry disc
Oil capacity88 qts
83.3 L
Five-speed transmission with three-speed power shift.
Speeds
With 18.4-38 rear tires.

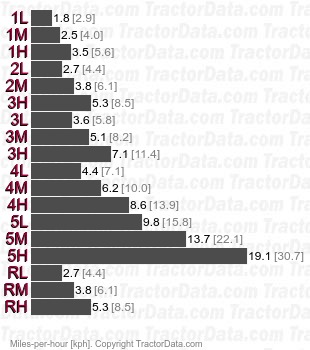

G950 Ampli-Torc three-speed power shift speeds
