Minneapolis-Moline G850 Transmission


Minneapolis-Moline G850 tractor photo
1971 - 1972
Row-Crop tractor
Series map:
G750
G850
77.8hp*
95.6hp*
*Estimated engine power for comparison only.

Note: the Minneapolis-Moline model G850 is the same as the Oliver 1755. The following data is from the 1755 listing.
Transmission options
6-speed gear
18-speed partial power shift
Transmission
Typegear
Gears6 forward and 2 reverse
Clutch305mm cerametallic disc
Speeds
With 18.4-34 rear tires.

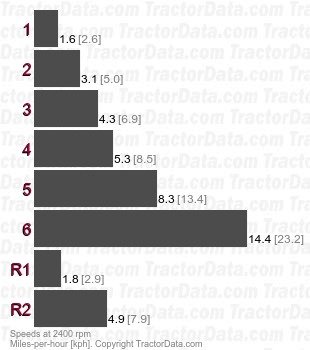

G850  gear speeds
Transmission
TransmissionHydraul-Shift
Typepartial power shift
Gears18 forward and 6 reverse
Clutch305mm cerametallic disc
The Hydraul-Shift overs a power shift between over-, under-, and direct-drive for each gear.
Speeds
With 18.4-34 rear tires.

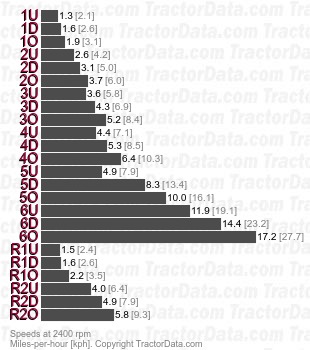

G850 Hydraul-Shift partial power shift speeds
