Tractors > Minneapolis-Moline > G705

Minneapolis-Moline G705



Minneapolis-Moline G705 tractor photo
1962 - 1965
Standard-tread tractor
Series map:
G705
108.0hp
Production
ManufacturerMinneapolis-Moline
Standard-tread tractor
Built in Hopkins, Minnesota, USA
Original price was $7,000 in 1965
Variants
G7052WD
G7064WD
Minneapolis-Moline G705 Engines
Minneapolis-Moline 8.3L 6-cyl diesel
Minneapolis-Moline 8.3L 6-cyl LP gas
Diesel Fuel tank38 gal
143.8 L
LP-gas Fuel tank41.2 gal
155.9 L
Engine details ...
Minneapolis-Moline G705 Transmission
5-speed unsynchronized gear
Transmission details ...
Minneapolis-Moline G705 Power
Engine112 hp
83.5 kW
Diesel PTO (claimed)92 hp
68.6 kW
LP-gas PTO (claimed)95 hp
70.8 kW
Drawbar (tested)90.80 hp
67.7 kW
PTO (tested)101.05 hp
75.4 kW
Performance test details ...
Mechanical
Two-wheel drive
Power steering
Differential disc brakes
Open operator station. Cab optional with available air-conditioning.
Photos

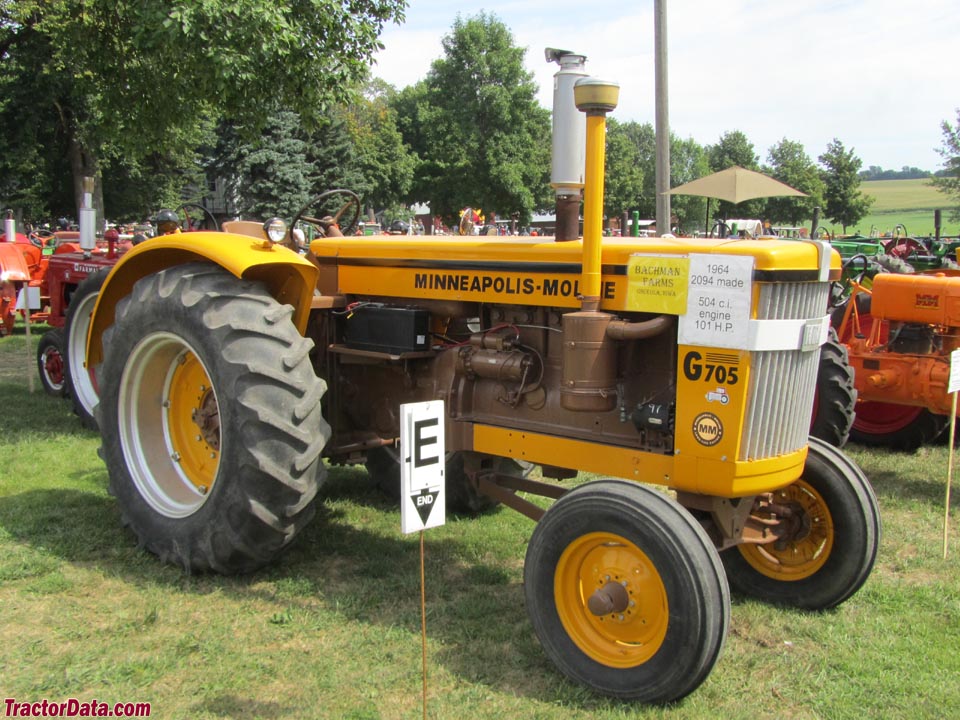

Minneapolis-Moline G705 with diesel engine.
Minneapolis-Moline G705 photos...
Hydraulics
Typeopen center OptOptional
Valves2
Power Take-off (PTO)
Rear PTOlive OptOptional
Rear PTO Type540 (1.375)
Engine RPM540@1200
Dimensions & Tires
Wheelbase96 inches
243 cm
Weight7617 to 8155 pounds
Front tire7.50-18
Rear tire18.4-34
Full dimensions and tires ...
G705 Serial Number Location

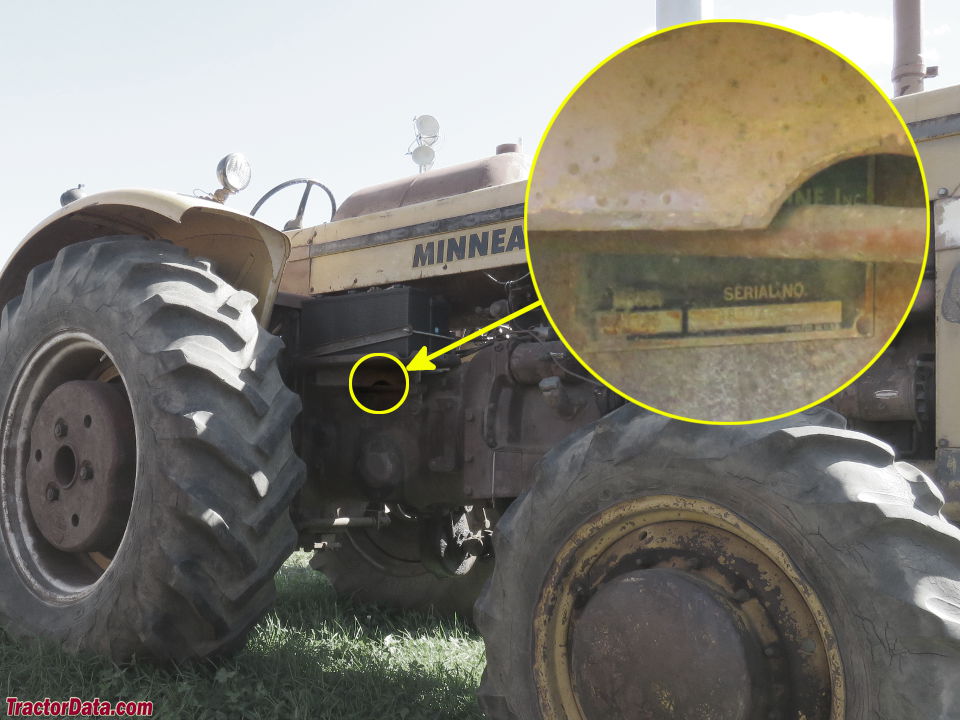

Minneapolis-Moline G705 serial number location
Serial number plate on the right side of the Minneapolis-Moline G705 tractor frame, ahead of the operator platform and below the battery tray.
G705 Serial Numbers
196223800001 (LP)
196323800079 (LP)
196423800591 (LP)
196523801093 (LP)
Final23801223 (LP)
196223900050 (diesel)
196323900051 (diesel)
196423900899 (diesel)
196523900899 (diesel)
Final23902094 (diesel)

FAQ: How to read a serial number table.
References
G705 references literature
New Moline Big G Tractors with 100 H.P. Engines published in 1962, by Minneapolis-Moline
Buyer's Guide published in 1964, by Minneapolis-Moline
