Tractors > Minneapolis-Moline > G705

Minneapolis-Moline G705 Tests



Minneapolis-Moline G705 tractor photo
1962 - 1965
Standard-tread tractor
Series map:
G705
112.2hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 835: diesel 5-speed 2WD
NTTL 836: LP gas 5-speed 2WD
Nebraska Tractor Test 835

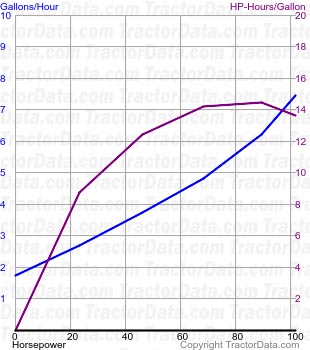

G705 fuel use from test 835
Nebraska Tractor Test 835
Diesel 5-speed 2WD
April 19 - 30, 1963
Link: Nebraska Tractor Test 835 file
PTO performance
Power at rated engine speed101.01 hp
75.3 kW
Fuel use7.4 gal/hour
28.0 l/hour
Power at rated PTO speed81.47 hp
60.8 kW
Fuel use5.7 gal/hour
21.6 l/hour
Drawbar performance
Max power90.80 hp
67.7 kW
Fuel use7.4 gal/hour
28.0 l/hour
Gear 3 used for power test.
Max pull11,345 lbs
5146 kg
Gear 1 used for pull test.
Nebraska Tractor Test 836

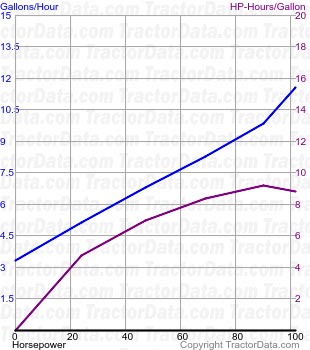

G705 fuel use from test 836
Nebraska Tractor Test 836
LP gas 5-speed 2WD
April 24 - May 1, 1963
Link: Nebraska Tractor Test 836 file
PTO performance
Power at rated engine speed101.05 hp
75.4 kW
Fuel use11.5 gal/hour
43.5 l/hour
Power at rated PTO speed82.12 hp
61.2 kW
Fuel use9.0 gal/hour
34.1 l/hour
Drawbar performance
Max power90.08 hp
67.2 kW
Fuel use11.4 gal/hour
43.1 l/hour
Gear 3 used for power test.
Max pull11,432 lbs
5185 kg
Gear 1 used for pull test.
