Minneapolis-Moline 5 Star Tests


Minneapolis-Moline 5 Star tractor photo
1957 - 1960
Series map:
5 Star
63.3hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 651: LP-gas Ampli-Torc 2WD
NTTL 652: diesel Ampli-Torc 2WD
Nebraska Tractor Test 651

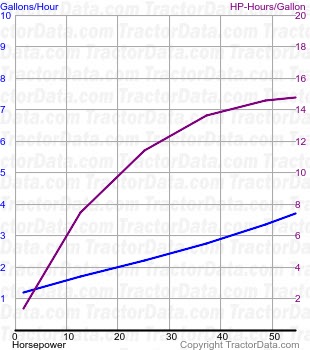

5 Star fuel use from test 651
Nebraska Tractor Test 651
LP-gas Ampli-Torc 2WD
May 13 - 24, 1958
Link: Nebraska Tractor Test 651 file
PTO performance
Power at rated engine speed54.96 hp
41.0 kW
Fuel use6.3 gal/hour
23.8 l/hour
Drawbar performance
Max power49.36 hp
36.8 kW
Gear 2 used for power test.
Max pull6023 lbs
2732 kg
Gear 1 used for pull test.
Nebraska Tractor Test 652

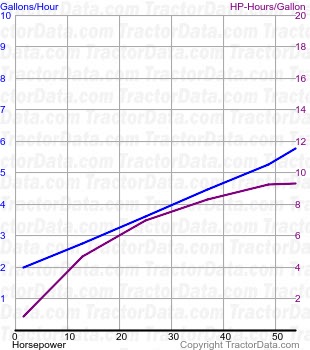

5 Star fuel use from test 652
Nebraska Tractor Test 652
Diesel Ampli-Torc 2WD
May 13 - 21, 1958
Link: Nebraska Tractor Test 652 file
PTO performance
Power at rated engine speed54.68 hp
40.8 kW
Fuel use3.7 gal/hour
14.0 l/hour
Drawbar performance
Max power49.62 hp
37.0 kW
Gear 2 used for power test.
Max pull6399 lbs
2902 kg
Gear 1 used for pull test.
