Minneapolis-Moline Uni-Tractor


Minneapolis-Moline Uni-Tractor tractor photo
1951 - 1963
Tool Carrier tractor
Production
ManufacturerMinneapolis-Moline
Tool Carrier tractor
Built in Hopkins, Minnesota, USA
Original price was $3,900 in 1962
The Uni-Tractor was nicknamed the the "Minneapolis-Moline Motorcycle". The machine was a power unit used to drive other machinery, including the Uni-Harvester combine, the Uni-Foragor forage harvester, the Uni-Baler hay baler, and the Uni-Picker corn picker.
Minneapolis-Moline Uni-Tractor Engine
Minneapolis-Moline 3.4L 4-cyl gasoline
Fuel tank14 gal
53.0 L
Engine details ...
Minneapolis-Moline Uni-Tractor Power
Engine48 hp
35.8 kW
Mechanical
Drive3x2 2WD
Steeringpower
Mechanical expanding shoe brakes
Open operator station.
Dimensions & Tires
Wheelbase104.25 inches
264 cm
Weight3885 lbs
1762 kg
Front tire10-24
Rear tire7.50-18
Full dimensions and tires ...

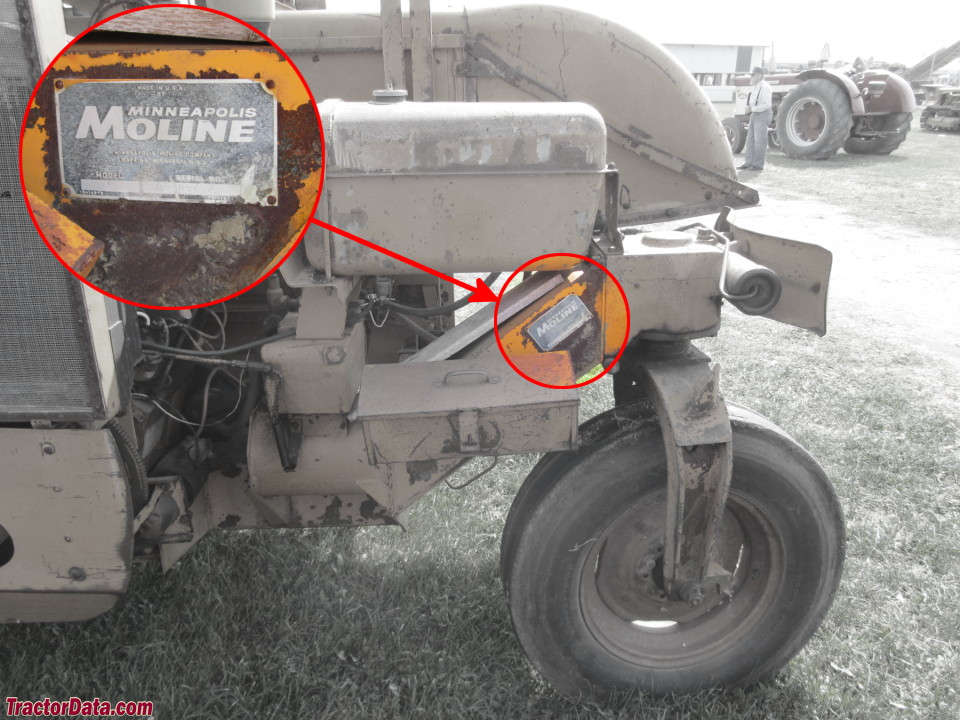

Uni-Tractor Serial Number Location
Minneapolis-Moline Uni-Tractor serial number location
Left-side on rear of the Uni-Harvester frame, just forward of rear wheel.
Electrical
Charging systemgenerator
Battery volts6
References
Uni-Tractor references literature
The New Uni-Tractor for the champion Uni-Farmor published in 1955, by Minneapolis-Moline
Sales Manual published in 1952, by Minneapolis-Moline
