Tractors > Minneapolis-Moline > UB

Minneapolis-Moline UB Tests



Minneapolis-Moline UB tractor photo
1953 - 1955
Model U Series
Row-Crop tractor
Tractor Tests
NTTL 520: gasoline 5-speed 2WD
NTTL 522: LP gas 5-speed 2WD
Nebraska Tractor Test 520

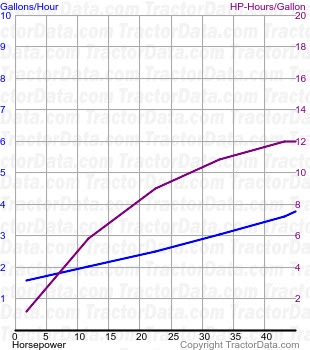

UB fuel use from test 520
Nebraska Tractor Test 520
Gasoline 5-speed 2WD
May 25 - June 10, 1954
Link: Nebraska Tractor Test 520 file
Belt power (max)48.38 hp
36.1 kW
Belt fuel use (max)4.3 gal/hour
16.3 l/hour
Drawbar performance
Max power42.90 hp
32.0 kW
Gear 3 used for power test.
Max pull5,505 lbs
2497 kg
Gear 1 used for pull test.
Nebraska Tractor Test 522

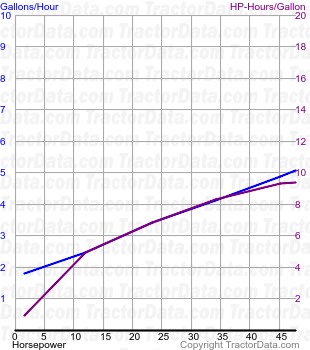

UB fuel use from test 522
Nebraska Tractor Test 522
LP gas 5-speed 2WD
May 25 - June 14, 1954
Link: Nebraska Tractor Test 522 file
Belt power (max)51.27 hp
38.2 kW
Belt fuel use (max)5.6 gal/hour
21.2 l/hour
Drawbar performance
Max power44.57 hp
33.2 kW
Gear 3 used for power test.
Max pull5,861 lbs
2658 kg
Gear 1 used for pull test.
