Tractors > Caterpillar > Twenty-Two

Caterpillar Twenty-Two Tests



Caterpillar Twenty-Two tractor photo
1934 - 1939
Agricultural Crawler tractor
Tractor Tests
NTTL 226: distillate 3-speed crawler
NTTL 228: gasoline 3-speed crawler
Nebraska Tractor Test 226

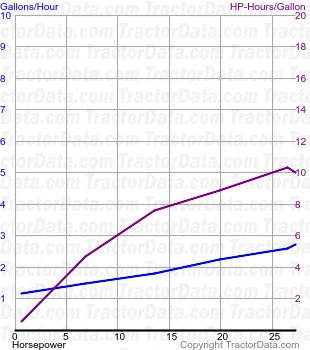

Twenty-Two fuel use from test 226
Nebraska Tractor Test 226
Distillate 3-speed crawler
September 25 - October 9, 1934
Link: Nebraska Tractor Test 226 file
Belt power (max)29.36 hp
21.9 kW
Belt fuel use (max)3.0 gal/hour
11.4 l/hour
Drawbar performance
Max power23.43 hp
17.5 kW
Gear 1 used for power test.
Max pull4,534 lbs
2056 kg
Gear 1 used for pull test.
Nebraska Tractor Test 228

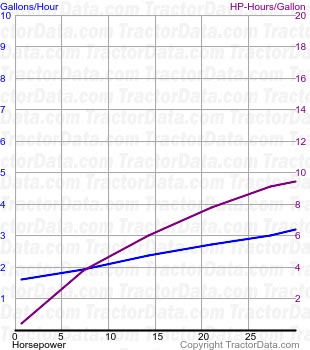

Twenty-Two fuel use from test 228
Nebraska Tractor Test 228
Gasoline 3-speed crawler
October 17 - 30, 1934
Link: Nebraska Tractor Test 228 file
Belt power (max)30.71 hp
22.9 kW
Belt fuel use (max)3.3 gal/hour
12.5 l/hour
Drawbar performance
Max power25.26 hp
18.8 kW
Gear 1 used for power test.
Max pull4,900 lbs
2222 kg
Gear 1 used for pull test.
