Caterpillar Fifteen Tests


Caterpillar Fifteen tractor photo
1929 - 1933
Agricultural Crawler tractor
Series map:
Ten
Fifteen
15.6hp*
22.2hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 159: 220 gasoline 3-speed crawler
NTTL 207: 143 gasoline 3-speed crawler
Nebraska Tractor Test 159

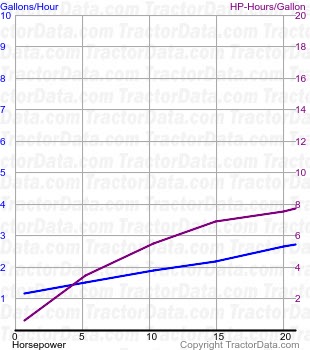

Fifteen fuel use from test 159
Nebraska Tractor Test 159
220 gasoline 3-speed crawler
May 9 - 14, 1929
Link: Nebraska Tractor Test 159 file
Belt power (max)24.77 hp
18.5 kW
Belt fuel use (max)3.0 gal/hour
11.4 l/hour
Drawbar performance
Max power21.79 hp
16.2 kW
Gear 2 used for power test.
Max pull4166 lbs
1889 kg
Gear 1 used for pull test.
Nebraska Tractor Test 207

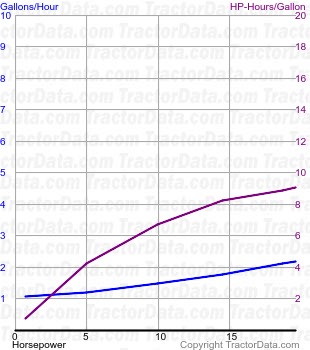

Fifteen fuel use from test 207
Nebraska Tractor Test 207
143 gasoline 3-speed crawler
June 7 - 29, 1932
Link: Nebraska Tractor Test 207 file
Belt power (max)20.39 hp
15.2 kW
Belt fuel use (max)2.2 gal/hour
8.3 l/hour
Drawbar performance
Max power16.99 hp
12.7 kW
Gear 2 used for power test.
Max pull3105 lbs
1408 kg
Gear 1 used for pull test.
