Caterpillar Ten Tests



Caterpillar Ten tractor photo
1928 - 1932
Agricultural Crawler tractor
Series map:
Ten
Fifteen
15.6hp*
22.2hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 160

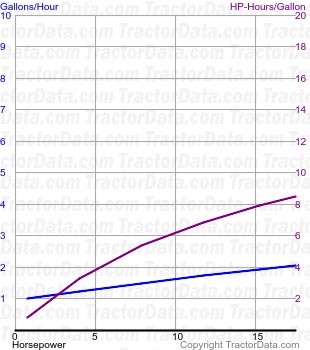

Ten fuel use from test 160
Nebraska Tractor Test 160
Gasoline crawler
May 6 - 21, 1929
Link: Nebraska Tractor Test 160 file
Belt power (max)18.1 hp
13.5 kW
Belt fuel use (max)2.1 gal/hour
7.9 l/hour
Drawbar performance
Max power14.9 hp
11.1 kW
Fuel use2.5 gal/hour
9.5 l/hour
Max pull2087 lbs
946 kg
