| | 1995 - 1998 |
| 6100 Series | | Row-Crop tractor |
|
Series map:
6150
6170
95.6hp*
107.8hp*
*Estimated engine power for comparison only.
| Transmission options |
| 16-speed synchronized |
| 32-speed four-speed power shift |
| Transmission |
| Transmission | Speedshift
|
| Type | synchronized
|
| Gears | 16 forward and reverse
|
| Clutch | 230mm wet disc
|
| Four gears in two ranges with two-speed power shift. Speedshift available with optional creeper range providing 24 total speeds forward and reverse. |
| Speeds |
| With 16.9-38 rear tires. Also available in 40 KPH version. |
|
| Transmission |
| Transmission | Dynashift
|
| Type | four-speed power shift
|
| Gears | 32 forward and reverse
|
| Clutch | 230mm wet disc
|
| Two ranges, each with four power shift gears in four synchronized ranges plus shuttle. |

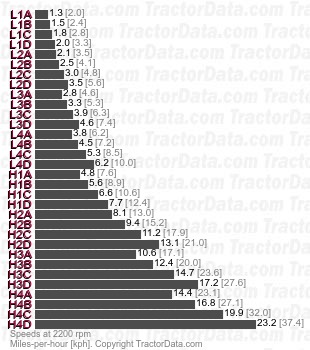

| Speeds |
| With 16.9R38 rear tires. |
|
