Massey Ferguson 4880 Transmission


Massey Ferguson 4880 tractor photo
1978 - 1983
4000 4WD Series
Four-wheel Drive (4WD) tractor
Series map:
4840
4880
4900
265.0hp
320.0hp
375.0hp
Transmission options
18-speed partial power shift
12-speed gear
Transmission
Typepartial power shift
Gears18 forward and 6 reverse
Clutchwet disc with four 14-inch plates
Oil capacity44 qts
41.6 L
Three gears (1-3) in two ranges (high/low) with three-speed power shift (low/intermediate/high).
Speeds
With 23.1x34 duals.

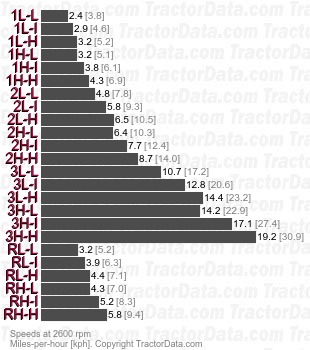

4880  partial power shift speeds
Shift Pattern
Massey Ferguson 4880 transmission controls
Massey Ferguson 4880 Transmission
Massey Ferguson 4880 transmission image
Transmission
Typegear
Gears12 forward and 4 reverse
Four gears in three ranges, plus reverse range.
Speeds
With 23.1-34 tires.

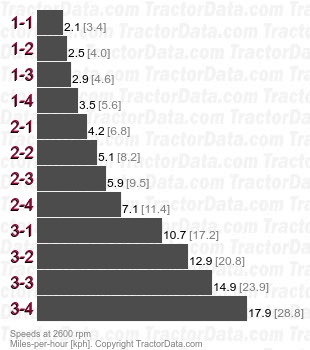

4880  gear speeds
Shift Pattern
Massey Ferguson 4880 transmission controls
