| | 1978 - 1983 |
| 4000 4WD Series | | Four-wheel Drive (4WD) tractor |
|
Series map:
4800
4840
4880
225.0hp
265.0hp
320.0hp
| Transmission options |
| 18-speed partial power shift |
| 12-speed gear |
| Transmission |
| Type | partial power shift
|
| Gears | 18 forward and 6 reverse
|
| Clutch | wet disc with four 14-inch plates
|
| Oil capacity | 44 qts
41.6 L
|
| Three gears (1-3) in two ranges (high/low) with three-speed power shift (low/intermediate/high). |

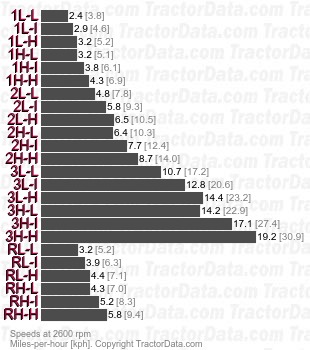

| Speeds |
| With 23.1x34 duals. |
|
| Shift Pattern |
 |
| Massey Ferguson 4840 Transmission |
 |
| Transmission |
| Type | gear
|
| Gears | 12 forward and 4 reverse
|
| Four gears in three ranges, plus reverse range. |

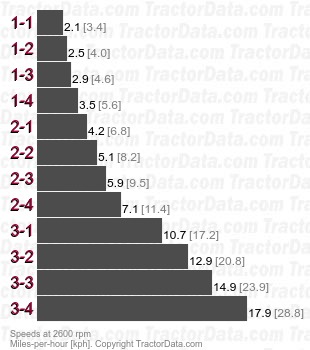

| Speeds |
| With 23.1-34 tires. |
|
| Shift Pattern |
 |
