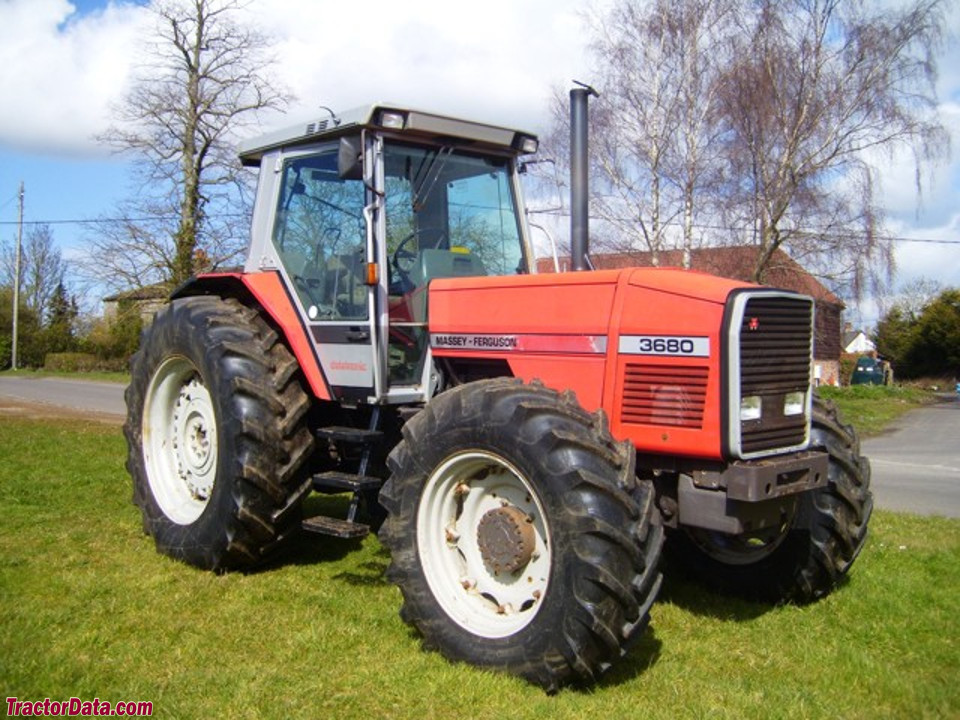

Massey Ferguson 3680
| | 1988 - 1991 |
| 3600 Series | | Row-Crop tractor |
|
Series map:
3650
3680
144.4hp*
177.8hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | Massey Ferguson
|
| Row-Crop tractor |
| Built in Beauvais, France |
| Original price | $64000 (1991)
|
| Massey Ferguson 3680 Power |
| PTO (claimed) | 160 hp
119.3 kW
|
| Mechanical |
| Two- or four-wheel drive |
| Steering | hydrostatic power
|
| Wet disc brakes |
| Cab standard with air-conditioning. |
| Capacity |
| Fuel | 86 gal
325.5 L
|
| Hydraulic system | 19.8 gal
74.9 L
|
| Hydraulics |
| Capacity | 19.8 gal
74.9 L
|
| Pressure | 240 psi (low-pressure element)
16.5 bar
|
| | 2540 psi (high-pressure element)
175.1 bar
|
| | 2610 psi (aux. pump)
180.0 bar
|
| Valves | 2 or 3
|
| Pump flow | 5.5 gpm (low-pressure element)
20.8 lpm
|
| | 14.1 gpm (high-pressure element)
53.4 lpm
|
| | 13.2 gpm (aux. pump)
50.0 lpm
|
| Tractor hitch |
| Rear Type | III
|
| Control | position and electronic draft control
|
| Rear lift (at 24"/610mm) | 11285 lbs
5118 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 1000
|
| Electrical |
| Ground | negative
|
| Battery volts | 12
|
| References |
 |
| Loaders - Compact and Agricultural published in 1989, by Massey Ferguson |
| MF 3100 and 3600 Series published in 1990, by Massey Ferguson |
