| | 1988 - 1991 |
| 3600 Series | | Row-Crop tractor |
|
Series map:
3650
3680
144.4hp*
177.8hp*
*Estimated engine power for comparison only.
| Engine Detail |
| Valmet 612DS |
| turbocharged diesel |
| 6-cylinder |
| liquid-cooled |
| Displacement | 452 ci
7.4 L
|
| Bore/Stroke | 4.25x5.28 inches
108 x 134 mm
|
| Cooling system | viscous fan
|
| Air cleaner | dry
|
| Rated RPM | 2200
|
| Starter volts | 12
|
| Oil capacity | 22 qts
20.8 L
|
| Coolant capacity | 31.6 qts
29.9 L
|

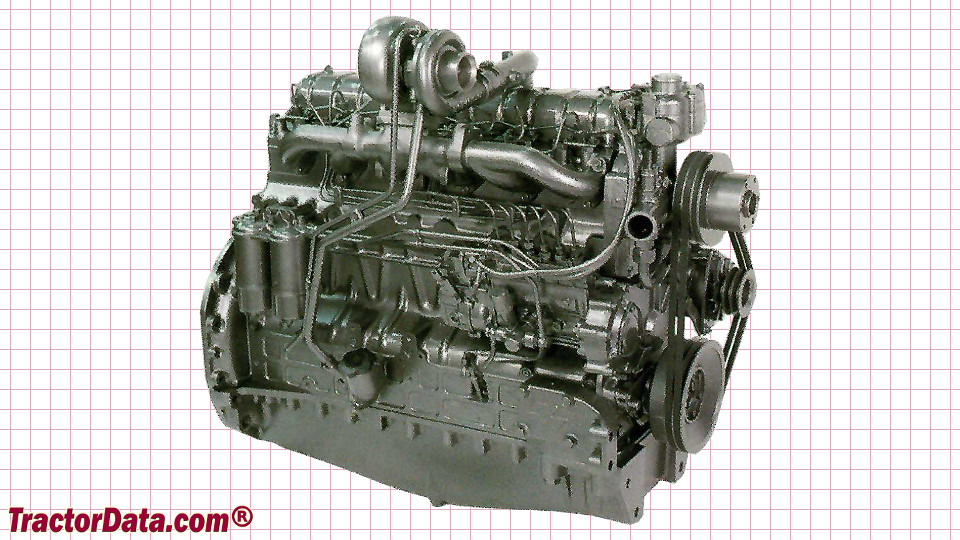

| Massey Ferguson 3680 Engine |
 |
