| | 1992 - 1994 |
| 3600 Series | | Row-Crop tractor |
|
Series map:
3660
3670
3690
155.6hp*
171.1hp*
188.9hp*
*Estimated engine power for comparison only.
| Engine Detail |
| Valmet 620DS |
| turbocharged diesel |
| 6-cylinder |
| liquid-cooled |
| Displacement | 403 ci
6.6 L
|
| Bore/Stroke | 4.25x4.73 inches
108 x 120 mm
|
| Cooling system | viscous fan
|
| Air cleaner | dry
|
| Rated RPM | 2200
|
| Starter volts | 12
|
| Oil capacity | 22 qts
20.8 L
|
| Coolant capacity | 28.4 qts
26.9 L
|

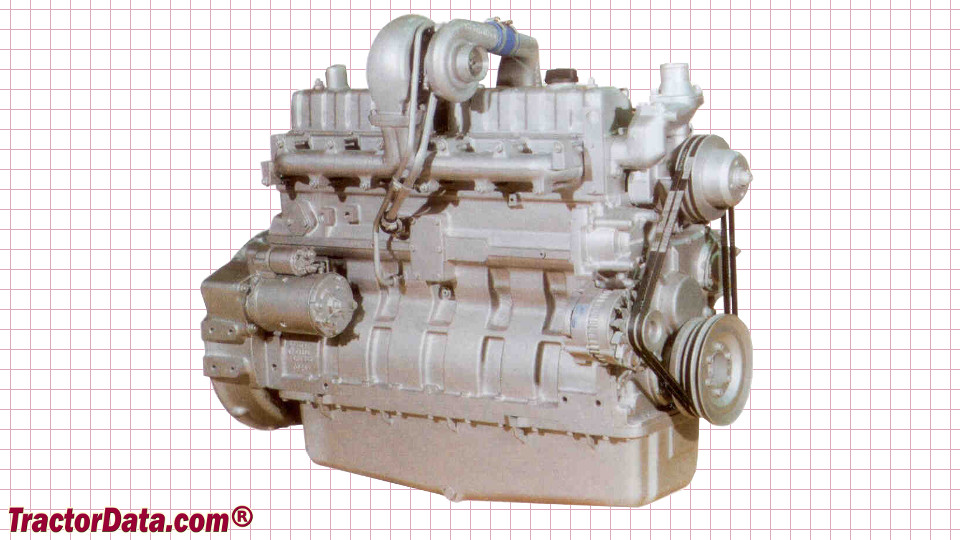

| Massey Ferguson 3670 Engine |
 |
