Massey Ferguson 3650
| | 1987 - 1990 |
| 3600 Series | | Row-Crop tractor |
|
Series map:
3630
3650
3680
127.8hp*
144.4hp*
177.8hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | Massey Ferguson
|
| Row-Crop tractor |
| Built in Beauvais, France |
| Original price | $53,000 (1990)
|
| Massey Ferguson 3650 Power |
| PTO (claimed) | 130 hp
96.9 kW
|
| Mechanical |
| Two- or four-wheel drive |
| Steering | hydrostatic power
|
| Hydraulic wet disc brakes |
| Silent Revolution Cab standard with air-conditioning. Autotronic standard. Datatronic optional. |
| Photos |
| No photos of the Massey Ferguson 3650 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
| Capacity |
| Fuel | 69 gal
261.2 L
|
| Hydraulic system | 22.5 gal
85.2 L
|
| Hydraulics |
| Capacity | 22.5 gal
85.2 L
|
| Valves | 2 to 4
|
| Pump flow | 14.4 gpm
54.5 lpm
|
| Total flow | 35.8 gpm
135.5 lpm
|
| Steering flow | 15.4 gpm
58.3 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Control | position control and electronic draft control
|
| Rear lift (at 24"/610mm) | 9400 lbs
4263 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | electro-hydraulic
|
| Rear PTO Type | 540/1000 (1.375)
|
| Engine RPM | 540@1992
|
| | 1000@2090
|
| Electrical |
| Ground | negative
|
| Battery volts | 12
|

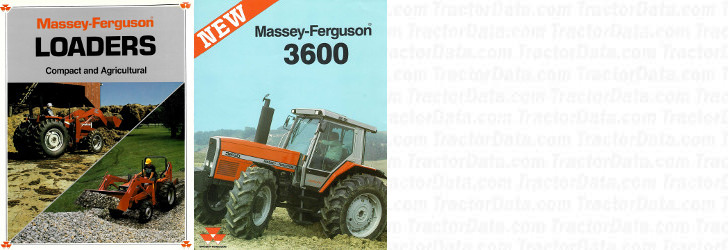

| References |
 |
| Loaders - Compact and Agricultural published in 1989, by Massey Ferguson |
| New 3600 published in 1988, by Massey Ferguson |
