Tractors > Massey Ferguson > 3070

Massey Ferguson 3070

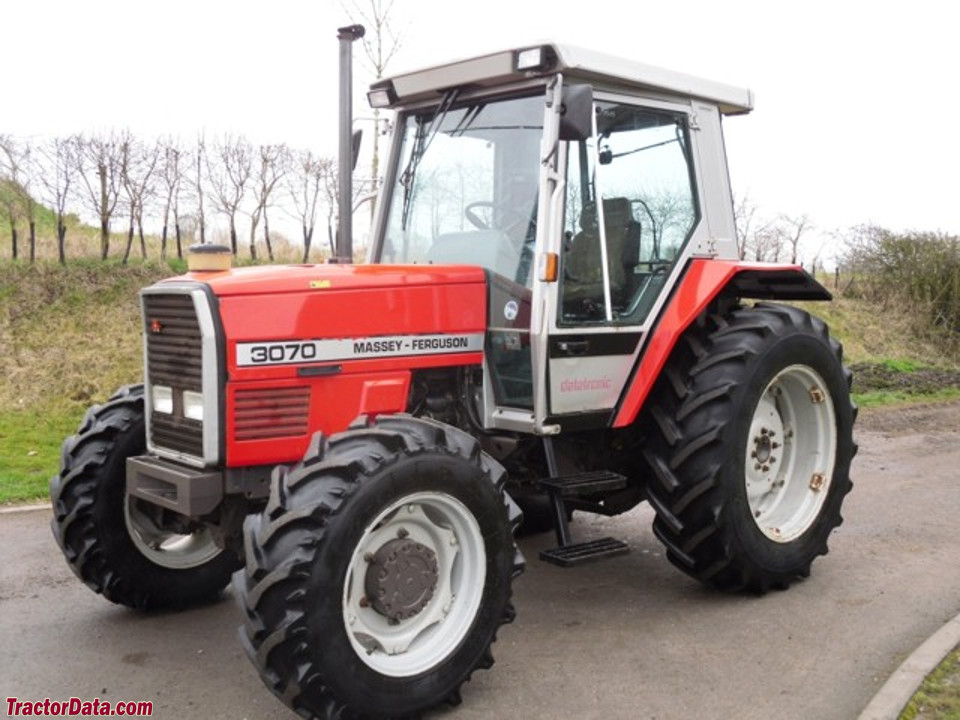

Massey Ferguson 3070 tractor photo
1986 - 1992
3000 Series
Row-Crop tractor
Series map:
3060
3070
3090
77.0hp
88.9hp*
107.0hp
Production
ManufacturerMassey Ferguson
Row-Crop tractor
Original price was $41,800 in 1992
Massey Ferguson 3070 Engine
Perkins 3.9L 4-cyl diesel
Engine details ...
Massey Ferguson 3070 Transmissions
16-speed fully synchronized
32-speed two-speed power shift
Transmission details ...
Massey Ferguson 3070 Power
PTO (claimed)80 hp
59.7 kW
Mechanical
Two- or four-wheel drive
Final drivesinboard planetary
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning.
Photos
Massey Ferguson 3070
Massey Ferguson 3070 photos...
Capacity
Fuel50 gal
189.2 L
Hydraulic system15.9 gal
60.2 L
Hydraulics
Typeopen center
Capacity15.9 gal
60.2 L
Pressure2610 psi
180.0 bar
Valves2 to 4
Pump flow13.2 gpm
50.0 lpm
Tractor hitch
Rear TypeII
Controlposition control and lower-link draft sensing
Rear lift (at ends)10617 lbs
4815 kg
Rear lift (at 24"/610mm)6900 lbs
3129 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000
Dimensions & Tires
2WD Wheelbase96.9 inches
246 cm
4WD Wheelbase97 inches
246 cm
Weight9652 to 10192 pounds
Front tire10.00-16
Rear tire18.4-34 (2WD)
Full dimensions and tires ...
Massey Ferguson 3070 attachments
front-end loader
Attachment details ...
Electrical
Groundnegative
Charging systemalternator
Charging amps55
Batteries2
Battery CCA420
Battery volts12
References
3070 references literature
Loaders - Compact and Agricultural published in 1989, by Massey Ferguson
MF 3000 & 3100 Series published in 1991, by Massey Ferguson
MF 3000 Product Information Manual (0783/0986) published in 1986*
*Publication contains known errors.
