Massey Ferguson 2805 Transmission


Massey Ferguson 2805 tractor photo
1978 - 1983
2000 Series
Row-Crop tractor
Series map:
2775
2805
177.8hp*
211.1hp*
*Estimated engine power for comparison only.
Transmission options
24-speed 3-speed power shift
8-speed mechanical shuttle
Transmission
TransmissionMulti-Power
Type3-speed power shift
Gears24 forward and 6 reverse
Clutch356mm dual cerametallic dry disc
Oil capacity120 qts
113.6 L
Eight forward gears with three power shift speeds in each gear.
Speeds
With 18.4x38 rear tires.
2805 Multi-Power 3-speed power shift speeds
Shift Pattern
Massey Ferguson 2805 transmission controls
Transmission
Typemechanical shuttle
Gears8 forward and 6 reverse
Clutch356mm dual cerametallic dry disc
Speeds
With 18.4x38 rear tires.

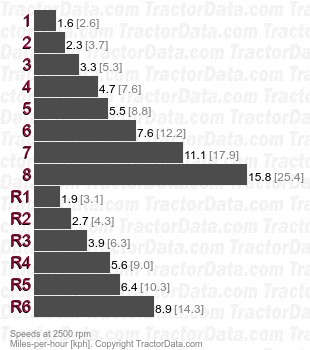

2805  mechanical shuttle speeds
Shift Pattern
Massey Ferguson 2805 transmission controls
