| | 1978 - 1983 |
| 2000 Series | | Row-Crop tractor |
|
Series map:
2705
2745
2775
133.3hp*
155.6hp*
177.8hp*
*Estimated engine power for comparison only.
| Transmission options |
| 24-speed 3-speed power shift |
| 8-speed mechanical shuttle |
| Transmission |
| Transmission | Multi-Power
|
| Type | 3-speed power shift
|
| Gears | 24 forward and 6 reverse
|
| Clutch | 356mm dual cerametallic dry disc
|
| Oil capacity | 120 qts
113.6 L
|
| Eight forward gears with three power shift speeds in each gear. |

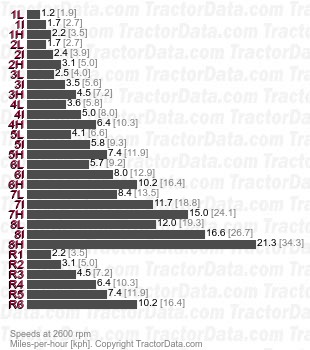

| Speeds |
| With 18.4x38 rear tires. |
|
| Shift Pattern |
 |
| Transmission |
| Type | mechanical shuttle
|
| Gears | 8 forward and 6 reverse
|
| Clutch | 356mm dual cerametallic dry disc
|

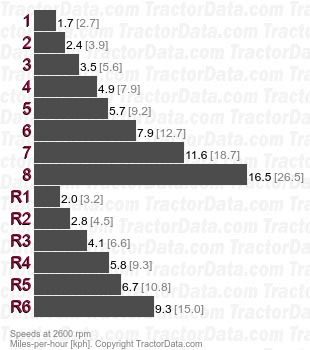

| Speeds |
| With 18.4x38 rear tires. |
|
| Shift Pattern |
 |
