Massey Ferguson 2705 Tests


Massey Ferguson 2705 tractor photo
1978 - 1983
2000 Series
Row-Crop tractor
Series map:
2675
2705
2745
111.1hp*
133.3hp*
155.6hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 1310: diesel 24-speed 2WD
NTTL 1322: diesel 8-speed 2WD
Nebraska Tractor Test 1310

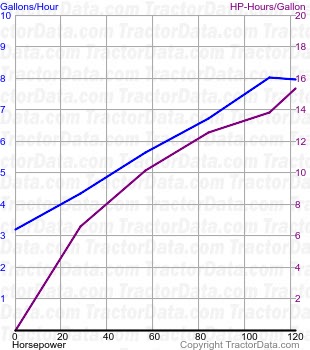

2705 fuel use from test 1310
Nebraska Tractor Test 1310
Diesel 24-speed 2WD
May 7 - 14, 1979
Link: Nebraska Tractor Test 1310 file
PTO performance
Power at rated engine speed122.20 hp
91.1 kW
Fuel use8.0 gal/hour
30.3 l/hour
Power at rated PTO speed115.85 hp
86.4 kW
Fuel use7.0 gal/hour
26.5 l/hour
Drawbar performance
Max power101.44 hp
75.6 kW
Fuel use8.0 gal/hour
30.3 l/hour
Gear 5I used for power test.
Max pull13085 lbs
5935 kg
Gear 2H used for pull test.
Nebraska Tractor Test 1322

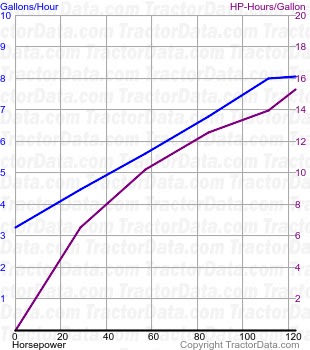

2705 fuel use from test 1322
Nebraska Tractor Test 1322
Diesel 8-speed 2WD
August 31 - September 6, 1979
Link: Nebraska Tractor Test 1322 file
PTO performance
Power at rated engine speed121.11 hp
90.3 kW
Fuel use8.0 gal/hour
30.3 l/hour
Power at rated PTO speed114.44 hp
85.3 kW
Fuel use6.8 gal/hour
25.7 l/hour
Drawbar performance
Max power98.51 hp
73.5 kW
Fuel use8.7 gal/hour
32.9 l/hour
Gear 4 used for power test.
Max pull12588 lbs
5709 kg
Gear 2 used for pull test.
