| 1978 - 1983 |
2000 Series | Row-Crop tractor |
|
Series map:
2675
2705
111.1hp*
133.3hp*
*Estimated engine power for comparison only.
Transmission options |
24-speed 3-speed power shift |
8-speed mechanical shuttle |
Transmission |
Transmission | Multi-Power
|
Type | 3-speed power shift
|
Gears | 24 forward and 6 reverse
|
Clutch | 356mm cerametallic dry disc
|
Oil capacity | 120 qts 113.6 L
|
Eight forward gears with three power shift speeds in each gear. |

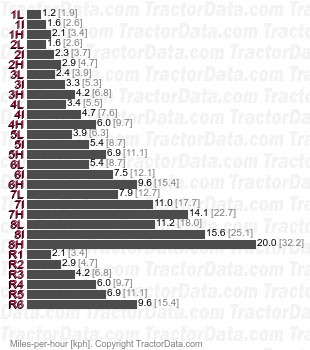

Speeds |
With 18.4x38 rear tires. |
|
Shift Pattern |
|
Transmission |
Type | mechanical shuttle
|
Gears | 8 forward and 6 reverse
|
Clutch | 356mm cerametallic dry disc
|

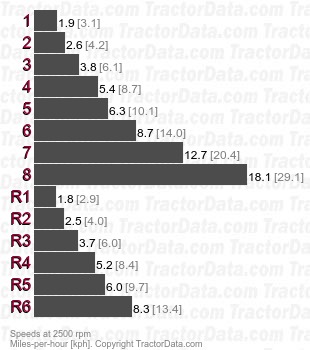

Speeds |
With 18.4x38 rear tires. |
|
Shift Pattern |
|
