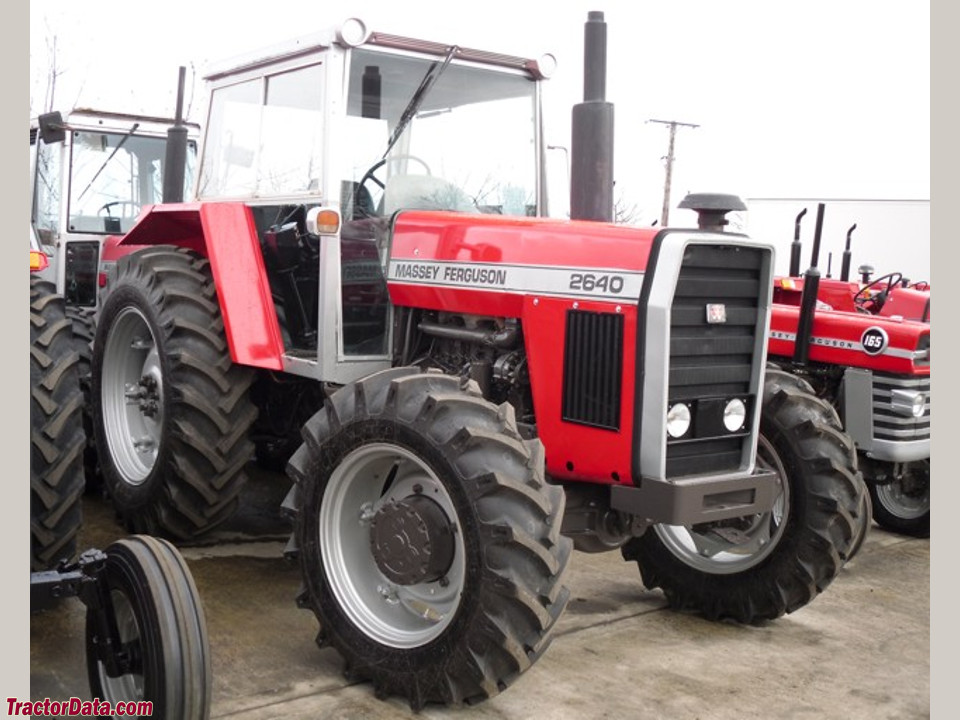

Massey Ferguson 2640
| | 1980 - 1985 |
| 2000 Series | | Row-Crop tractor |
|
Series map:
2620
2640
2680
102.0hp
110.0hp
130.0hp
| Production |
| Manufacturer | Massey Ferguson
|
| Row-Crop tractor |
| Built in Beauvais, France |
| Original price was $38,000 in 1983 |
| Massey Ferguson 2640 Power |
| Engine | 110 hp
82.0 kW
|
| PTO (claimed) | 90 hp
67.1 kW
|
| Drawbar (tested) | 74.77 hp
55.8 kW
|
| PTO (tested) | 90.95 hp
67.8 kW
|
 Performance test details ... |
| Mechanical |
| Two- or four-wheel drive |
| Final drives | inboard planetary
|
| Differential lock | hydraulic
|
| Power steering |
| Hydraulic wet disc brakes |
| Cab standard with air-conditioning. |
| Hydraulics |
| Type | open center
|
| Valves | 2 or 3
|
| Pump flow | 15 gpm
56.8 lpm
|
| Total flow | 34.8 gpm
131.7 lpm
|
| Steering flow | 14.5 gpm
54.9 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Control | position and draft control
|
| Rear lift (at ends) | 9921 lbs
4500 kg
|
| Rear lift (at 24"/610mm) | 7600 lbs
3447 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | hydraulic disc
|
| Rear PTO Type | 540 (1.375)
|
| | 1000 (1.375)
|
| Engine RPM | 540@1900
|
| | 1000@2090
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Batteries | 2
|
| Battery volts | 12
|
| Battery AH | 85
|
| References |
 |
| 2640 published in 1982, by Massey Ferguson |
| Product Information Manual MF 2640 Tractor published in 1982, by Massey Ferguson |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on July 30, 2024 |
