Massey Ferguson 184-4
| | 1976 - 1981 |
| 104 Series | | Utility tractor | | Landini built |
|
Series map:
174-4
184-4
48.5kw
50.7kw
| Production |
| Distributor | Massey Ferguson
|
| Manufacturer | Landini
|
| Utility tractor |
| Built in Italy |
| Original price was $24,000 in 1981 |
| Massey Ferguson 184-4 Power |
| Engine | 68 hp
50.7 kW
|
| PTO (claimed) | 62 hp
46.2 kW
|
| Drawbar (tested) | 51.04 hp
38.1 kW
|
| PTO (tested) | 62.45 hp
46.6 kW
|
 Performance test details ... |
| Mechanical |
| Four-wheel drive |
| Differential lock | mechanical rear
|
| Power steering |
| Dry disc brakes |
| Open operator station. Cab optional. |
| Photos |
| No photos of the Massey Ferguson 184-4 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
| Capacity |
| Fuel | 16 gal
60.6 L
|
| Hydraulic system | 5.6 gal
21.2 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 5.6 gal
21.2 L
|
| Pressure | 2418 psi
166.7 bar
|
| Valves | 2
|
| Total flow | 28.1 gpm
106.4 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Control | position and draft control
|
| Rear lift (at ends) | 5842 lbs
2649 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | dry disc
|
| Rear PTO Type | 540 (1.375)
|
| | 540/1000 (1.375)OptOptional
|
| Engine RPM | 540@1944
|
| | 1000@1916
|
| 184-4 Serial Number Location |
 |

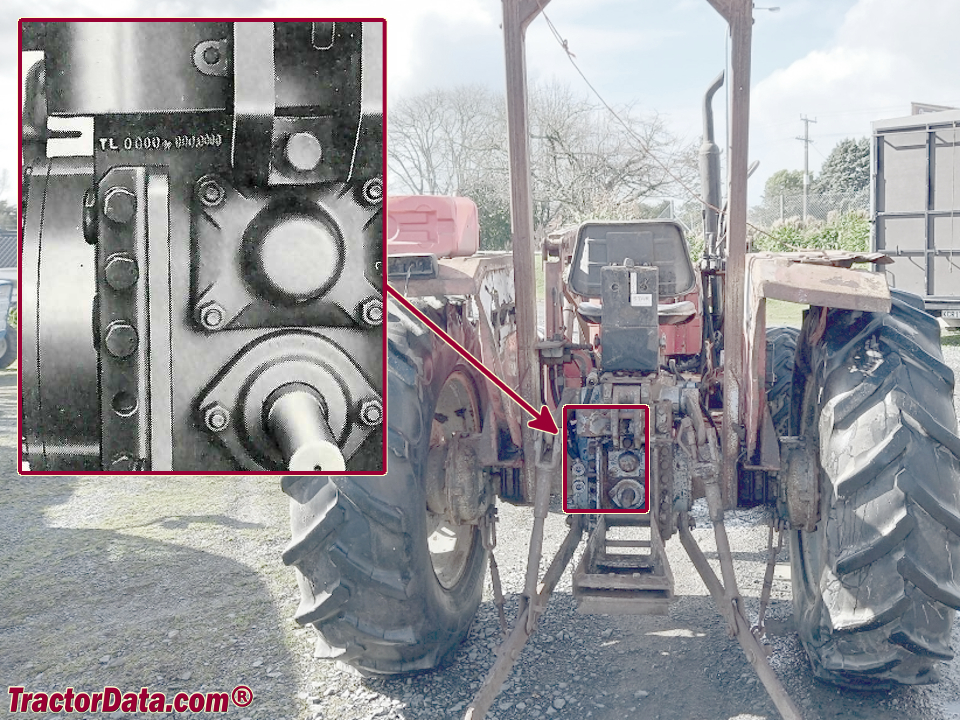

| Serial number stamped into the rear of the tractor, above and to the left of the PTO shaft. |
| Electrical |
| Ground | negative
|
| Charging system | Lucas C40A
|
| Battery volts | 12
|
| Battery AH | 92
|
| References |
 |
| Operator Instruction Book 154 - 174 - 184 - 194 (3300912M2)* |
| MF 184-4 4-Wheel Drive Tractor published in 1978, by Massey Ferguson |
| *Publication contains known errors. |
