Massey Ferguson 1500 Transmission


Massey Ferguson 1500 tractor photo
1971 - 1974
Four-wheel Drive (4WD) tractor
Series map:
1500
1800
180.0hp
210.0hp
Transmission
Typegear
Gears12 forward and 4 reverse
Clutch14-inch dry disc
Three gears (1-3) with two ranges (high/low) and standard or overdrive mode.
Speeds

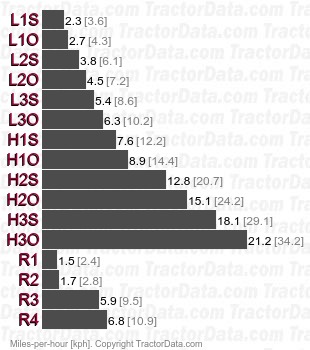

1500  gear speeds
Shift Pattern
Massey Ferguson 1500 transmission controls
