| | 1993 - 2002 |
| 1200 Compact Series | | Compact Utility tractor | | Iseki built |
|
Series map:
1225
1230
1233
24.3hp
27.0hp
28.4hp
| Transmission options |
| 9-speed gear |
| hydrostatic |
| 12-speed creeper |
| Transmission |
| Type | gear
|
| Gears | 9 forward and 3 reverse
|
| Clutch | 215mm dry disc
|
| Oil capacity | 12.7 qts
12.0 L
|
| Three gears, plus reverse, in three ranges. Tractor must be stopped, and clutch used, to shift gear or range. |
| Speeds |
| With 12.4-16 rear tires. |
|
| Transmission |
| Type | hydrostatic
|
| Gears | infinite forward and reverse (3-range)
|

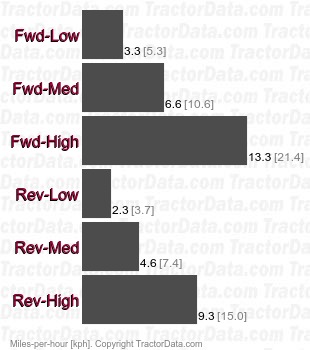

| Speeds |
| With 12.4-16 rear tires. |
|
| Transmission |
| Type | creeper
|
| Gears | 12 forward and 4 reverse
|
| Clutch | 215mm dry disc
|
| Oil capacity | 12.7 qts
12.0 L
|
| Optional additional creeper range for the standard 9-speed transmission. |

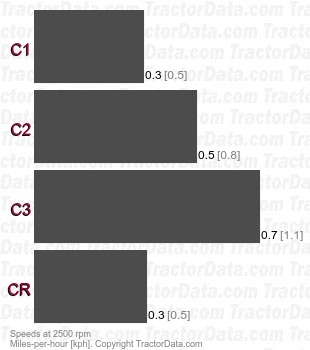

| Speeds |
| With 12.4-16 rear tires. |
|
