| | 1973 - 1978 |
| Row-Crop tractor |
|
Series map:
1135
1155
134.4hp*
155.6hp*
*Estimated engine power for comparison only.
| Transmission options |
| 12-speed two-speed power shift |
| 8-speed gear |
| Transmission |
| Transmission | Multi-Power
|
| Type | two-speed power shift
|
| Gears | 12 forward and 4 reverse
|
| Clutch | 356mm dry disc
|
| Three gears (1-3), plus reverse (R) in two ranges (low-high), with additional two-speed Multi-Power power shift. |

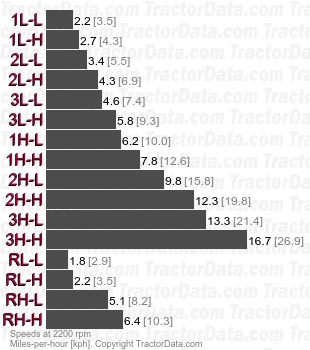

| Speeds |
| With 18.4x38 rear tires. |
|
| Transmission |
| Type | gear
|
| Gears | 8 forward and 2 reverse
|
| Clutch | 35.6mm dry disc
|

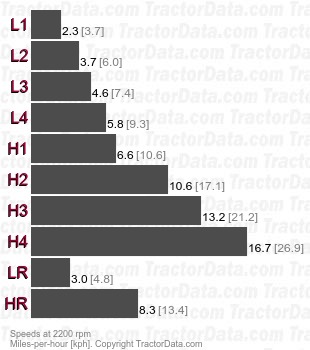

| Speeds |
| With 18.4x38 rear tires. |
|
