Massey Ferguson 1140

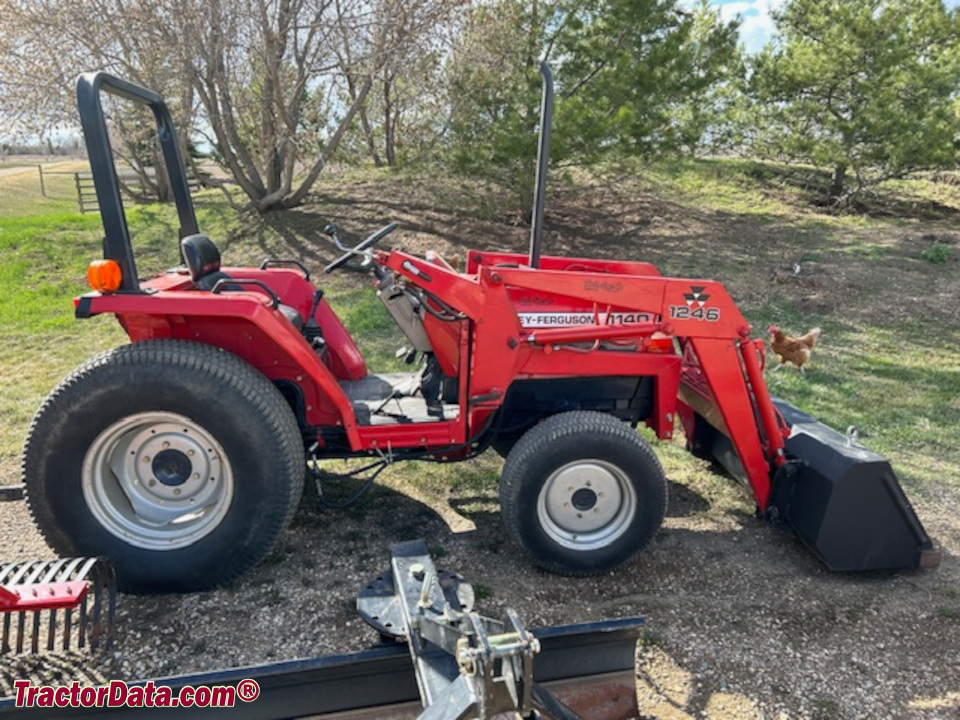

Massey Ferguson 1140 tractor photo
1991 - 1993
1100 Series
Compact Utility tractor
Iseki built
Series map:
1140
1145
30.0hp
35.0hp
Production
DistributorMassey Ferguson
ManufacturerIseki
Compact Utility tractor
Original price was $13,200 in 1992
Massey Ferguson 1140 Engine
Isuzu 1.5L 3-cyl diesel
Engine details ...
Massey Ferguson 1140 Transmission
16-speed partially synchronized
Transmission details ...
Massey Ferguson 1140 Power
Engine30 hp
22.4 kW
PTO (claimed)26.2 hp
19.5 kW
Mechanical
Two- or four-wheel drive
Power steering
Mechanical wet disc brakes
Two-post fixed ROPS.
Photos
No photos of the Massey Ferguson 1140 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel7.9 gal
29.9 L
Hydraulic system6.6 gal
25.0 L
Steering2.8 qts
2.6 L
Hydraulics
Typeopen center
Capacity6.6 gal
25.0 L
Pressure2133 psi
147.1 bar
Valves2 OptOptional
Pump flow6.9 gpm
26.1 lpm
Steering cap.2.8 qts
2.6 L
Tractor hitch
Rear TypeI
Controlposition control
Rear lift (at ends)2866 lbs
1300 kg
Rear lift (at 24"/610mm)1785 lbs
809 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic
Rear PTO Type540 (1.375)
Mid PTOindependent OptOptional
Mid PTO Type1950 (1.00 15-spline)
Engine RPM1960@2600
Dimensions & Tires
Wheelbase67 inches
170 cm
Weight2590 to 2700 pounds
Front tire5.00x15
Rear tire12.4x24 (2WD)
Full dimensions and tires ...
Massey Ferguson 1140 attachments
front-end loader
Attachment details ...
Electrical
Groundnegative
Charging systemalternator
Charging amps40
Battery CCA670
Battery volts12
References
1140 references literature
1140/1145 30-35 Engine HP Compact Tractors published in 1991, by Massey Ferguson
1140 published in 1991, by Massey Ferguson
