Massey Ferguson 1130 Tests


Massey Ferguson 1130 tractor photo
1964 - 1972
1000 Series
Row-Crop tractor
Series map:
1100
1130
1150
104.4hp*
134.4hp*
146.0hp
Nebraska Tractor Test 948

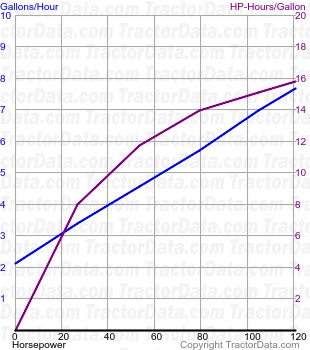

1130 fuel use from test 948
Nebraska Tractor Test 948
Diesel 12-speed 2WD
October 7 - 19, 1966
Link: Nebraska Tractor Test 948 file
PTO performance
Power at rated engine speed120.51 hp
89.9 kW
Fuel use7.6 gal/hour
28.8 l/hour
Power at rated PTO speed117.35 hp
87.5 kW
Fuel use7.1 gal/hour
26.9 l/hour
Drawbar performance
Max power106.91 hp
79.7 kW
Fuel use7.5 gal/hour
28.4 l/hour
Gear 5 used for power test.
