Massey Ferguson 1130 Engine


Massey Ferguson 1130 tractor photo
1964 - 1972
1000 Series
Row-Crop tractor
Series map:
1100
1130
1150
104.4hp*
134.4hp*
146.0hp
Engine Detail
Perkins AT6.534
turbocharged diesel
6-cylinder
liquid-cooled inline
Displacement354 ci
5.8 L
Bore/Stroke3.875x5.00 inches
98 x 127 mm
Air cleanerdry
Compression16:1
Rated RPM2200
Starter volts12
Oil capacity16 qts
15.1 L
Coolant capacity22 qts
20.8 L
Massey Ferguson 1130 Engine

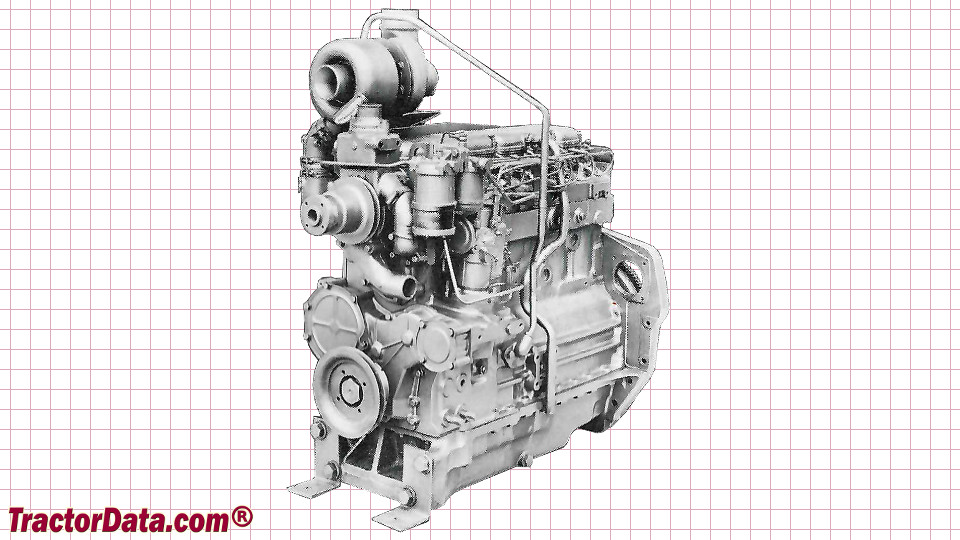

Massey Ferguson 1130 engine image
