Massey Ferguson 1100
| | 1964 - 1972 |
| 1000 Series | | Row-Crop tractor |
|
Series map:
1080
1100
1130
88.9hp*
104.4hp*
134.4hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | Massey Ferguson
|
| Row-Crop tractor |
| Original price was $7,700 in 1972 |
| Massey Ferguson 1100 Power |
| Drawbar (claimed) | 85 hp
63.4 kW
|
| PTO (claimed) | 94 hp
70.1 kW
|
| Drawbar (tested) | 84.61 hp
63.1 kW
|
| PTO (tested) | 93.94 hp
70.1 kW
|
 Performance test details ... |
| Mechanical |
| Two-wheel drive |
| Final drives | planetary
|
| Differential lock | hydraulic rear OptOptional
|
| Power steering |
| Hydraulic wet disc brakes |
| Open operator station. Cab optional with available air-conditioning. |
| Capacity |
| Open Fuel | 35 gal
132.5 L
|
| Cab Fuel | 50 gal
189.2 L
|
| Hydraulic system | 17 gal
64.3 L
|
| Hydraulics |
| Type | closed center
|
| Capacity | 17 gal
64.3 L
|
| Pressure | 2745 psi
189.3 bar
|
| Valves | 1
|
| Pump flow | 20 gpm
75.7 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Control | position and draft control
|
| Rear lift (at 24"/610mm) | 5200 lbs
2358 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | wet disc
|
| Rear PTO Type | 540/1000 (1.375)
|
| 1100 Serial Numbers |
| Location: | Right side of tractor.
|
| 1965 | 650000174
|
| 1966 | 650001997
|
| 1967 | 650005482
|
| 1967 | 9B10001
|
| 1968 | 9B14693
|
| 1969 | 9B18673
|
| 1970 | 9B23486
|
| 1971 | 9B28238
|
| 1972 | 9B31959
|
FAQ: How to read a serial number table.
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Gas Batteries | 1
|
| Diesel Batteries | 2
|
| Battery volts | 12
|
| Battery AH | 96
|
| References |
 |

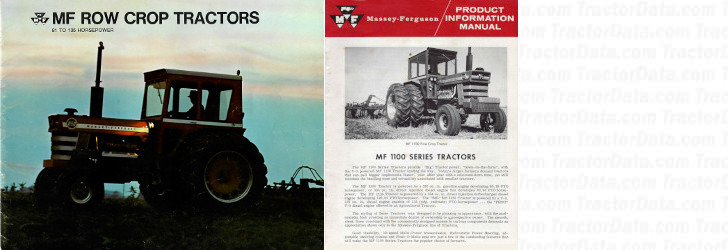

| MF Row Crop Tractors published in 1969, by Massey Ferguson |
| MF 1100 Series Tractor Product Information Manual published by Massey Ferguson |
| Page information |
 |
| Copyright 2025 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on March 16, 2025 |
©2000-2025 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Transmission details ...
Full dimensions and tires ...
