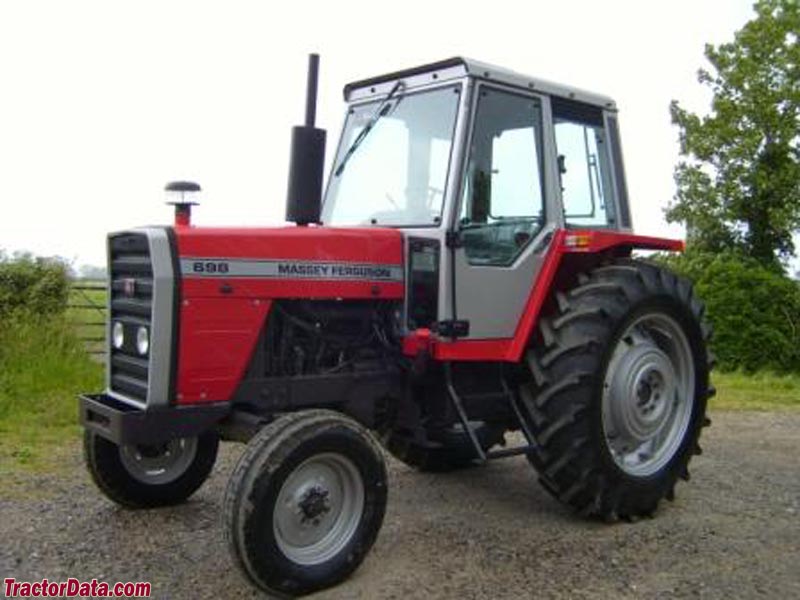

Massey Ferguson 698
| | 1983 - 1986 |
| 600 Series | | Utility tractor |
|
Series map:
690T
698
699
90.0hp
86.7hp*
94.4hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | Massey Ferguson
|
| Utility tractor |
| Built in Beauvais, France |
| Original price was $32,300 in 1986 |
| Massey Ferguson 698 Power |
| PTO (claimed) | 78 hp
58.2 kW
|
| Drawbar (tested) | 65.83 hp
49.1 kW
|
| PTO (tested) | 78.83 hp
58.8 kW
|
 Performance test details ... |
| Mechanical |
| Two- or four-wheel drive |
| Final drives | outboard planetary
|
| Differential lock | mechanical rear
|
| Power steering |
| Hydraulic wet disc brakes |
| Four-post ROPS canopy. Cab available with air-conditioning. |
| Hydraulics |
| Type | open center
|
| Valves | 2 or 3
|
| Pump flow | 10 gpm (implement)
37.9 lpm
|
| | 7 gpm (hitch)
26.5 lpm
|
| Total flow | 17 gpm
64.3 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Control | position and draft control
|
| Rear lift (at 24"/610mm) | 4440 lbs
2013 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | hydraulic
|
| Rear PTO Type | 540/1000 (1.375)
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Battery volts | 12
|
| References |
 |
| 698,690,670 published in 1984, by Massey Ferguson |
| Product Information Manual MF 600 Series Tractors published in 1983, by Massey Ferguson |
