Massey-Harris 555


Massey-Harris 555 tractor photo
1955 - 1958
Standard-tread tractor
Series map:
555
78.9hp*
*Estimated engine power for comparison only.
Production
ManufacturerMassey-Harris
Standard-tread tractor
Original price was $4,200 in 1958
Massey-Harris 555 Engines
Continental 6.3L 4-cyl gasoline
Continental 6.3L 4-cyl diesel
Fuel tank27.5 gal
104.1 L
Engine details ...
Massey-Harris 555 Power
PTO (claimed)71 hp
52.9 kW
Drawbar (tested)57.55 hp
42.9 kW
Belt (tested)66.91 hp
49.9 kW
Performance test details ...
Mechanical
Two-wheel drive
Open operator station.
Power Take-off (PTO)
Rear PTO Type540
Engine RPM521@1350
Dimensions & Tires
Wheelbase88.5 inches
224 cm
Weight7500 lbs
3402 kg
Front tire7.50-18
Rear tire14-34
Full dimensions and tires ...

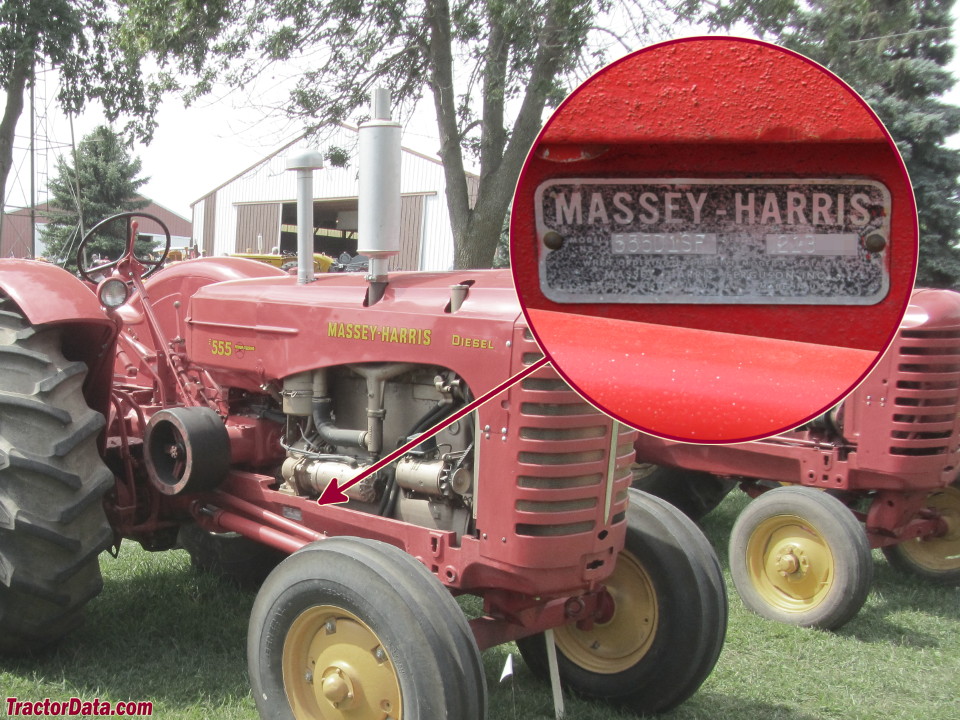

555 Serial Number Location
Massey-Harris 555 serial number location
Right side of tractor frame.
References
555 references literature
Dyanmic New Tractors published in 1956, by Massey-Harris
