Massey Ferguson 390T
| | 1989 - 1997 |
| 300 Series | | Utility tractor |
|
Series map:
390
390T
393
79.0hp
92.0hp
95.0hp
| Production |
| Manufacturer | Massey Ferguson
|
| Utility tractor |
| Built in Coventry, England |
| Original price was $34,000 in 1997 |
| Massey Ferguson 390T Power |
| Engine | 92 hp
68.6 kW
|
| PTO (claimed) | 85 hp
63.4 kW
|
| Drawbar (tested) | 65.2 hp
48.6 kW
|
| PTO (tested) | 80.2 hp
59.8 kW
|
 Performance test details ... |
| Mechanical |
| Two- or four-wheel drive |
| Power steering |
| Wet disc brakes |
| Two-post fixed ROPS. Cab optional with air-conditioning. |
| Capacity |
| Fuel | 28.5 gal
107.9 L
|
| Hydraulic system | 12.5 gal
47.3 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 12.5 gal
47.3 L
|
| Pressure | 3000 psi
206.8 bar
|
| Valves | 2
|
| Pump flow | 7.2 gpm (linkage pump)
27.3 lpm
|
| | 9.5 gpm (aux. pump)
36.0 lpm
|
| Total flow | 16.8 gpm
63.6 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Control | position and draft control
|
| Rear lift (at ends) | 5701 lbs (fixed-end)*Capacity with links horizontal
2585 kg
|
| | 6744 lbs (fixed-end with assist ram)*Capacity with links horizontal
3059 kg
|
| | 5410 lbs (wrist-action)*Capacity with links horizontal
2453 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540/1000 (1.375)
|
| 390T Serial Number Location |
 |
| Serial number plate on the right side of the tractor, near the brake pedals. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 45
|
| Battery CCA | 420 (2x)
|
| | 540 (1x)
|
| Battery volts | 12
|

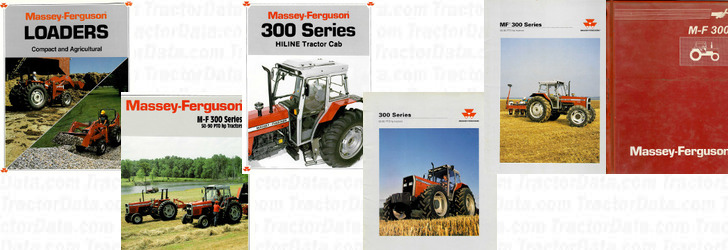

| References |
 |
| Loaders - Compact and Agricultural published in 1989, by Massey Ferguson |
| M-F 300 Series published in 1990, by Massey Ferguson |
| 300 Series HILINE Tractor Cab published in 1992, by Massey Ferguson |
| 300 Series published in 1992, by Massey Ferguson |
| MF 300 Series published in 1994, by Massey Ferguson |
| 300 Series Tractors Data Book published in 1992, by Massey Ferguson |
| M-F 300 Series Tractor Workshop Manual (1449 244M1) published in 1991 |
