Massey Ferguson 390T Engine


Massey Ferguson 390T tractor photo
1989 - 1997
300 Series
Utility tractor
Series map:
390
390T
393
79.0hp
92.0hp
95.0hp
Engine Detail
Perkins AT4.236
turbocharged diesel
4-cylinder
liquid-cooled
Displacement236 ci
3.9 L
Bore/Stroke3.875x5.00 inches
98 x 127 mm
Power92 hp
68.6 kW
Fuel systemdirect injection
Air cleanerdual dry element
Compression15.5:1
Rated RPM2200
Idle RPM750-2310
Torque258 lb-ft
349.8 Nm
Torque RPM1400
Firing order1-3-4-2
Starterelectric
Starter volts12

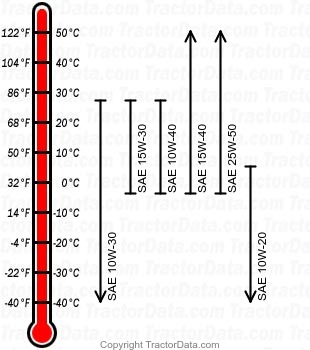

Oil capacity8.1 qts
7.7 L
Coolant capacity16.4 qts
15.5 L
