| | 1994 - 1999 |
| 304 Specialty Series | | Orchard/Vineyard tractor |
|
Series map:
374S
384S
394S
63.3hp*
72.2hp*
81.1hp*
*Estimated engine power for comparison only.
| Transmission options |
| 12-speed synchro |
| 12-speed shuttle |
| 24-speed creeper |
| Transmission |
| Type | synchro
|
| Gears | 12 forward and 4 reverse
|
| Clutch | 279mm dry disc
|
| Transmission |
| Type | shuttle
|
| Gears | 12 forward and reverse
|
| Clutch | 305mm dry disc
|

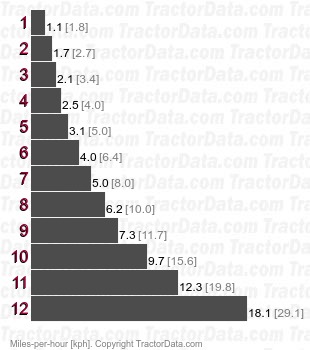

| Speeds |
| With 13.6-28 rear tires. |
|
| Transmission |
| Type | creeper
|
| Gears | 24 forward and 12 reverse
|

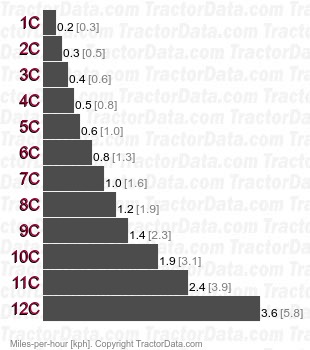

| Speeds |
| With 13.6-28 rear tires. |
|
