John Deere 5090M Transmission


John Deere 5090M tractor photo
2018 - 2022
5M Series
Utility tractor
Series map:
5085M
5090M
5100M
85.0hp
89.2hp
100.0hp
Transmission options
12-speed partially synchronized
16-speed power shuttle
32-speed two-speed power shift
Transmission
TransmissionSyncShuttle Plus
Typepartially synchronized
Gears12 forward and 4 reverse
Clutchwet disc
Three gears (1-3) plus reverse (R) in four ranges (A-D). Gear shifts are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift range.
Speeds
With 480/70R28 rear tires.
5090M SyncShuttle Plus partially synchronized speeds
Transmission
TransmissionPowrReverser
Typepower shuttle
Gears16 forward and reverse
Clutchwet disc
Four synchronized gears (1-4) in four synchronized ranges (A-D) with power shuttle. Push-button clutch.
Speeds
With 480/70R28 rear tires. Reverse speeds are 10% faster than forward.
5090M PowrReverser power shuttle speeds
Transmission
TransmissionPowerReverser Plus
Typetwo-speed power shift
Gears32 forward and 16 reverse
Clutchwet disc
Four synchronized gears (1-4) in four synchronized ranges (A-D) with power shuttle and push-button high-low shift. Push-button clutch.
Speeds
With 480/70R28 rear tires. Reverse speeds are 10% faster than forward (high) speeds.

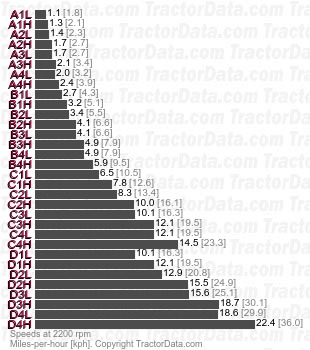

5090M PowerReverser Plus two-speed power shift speeds
